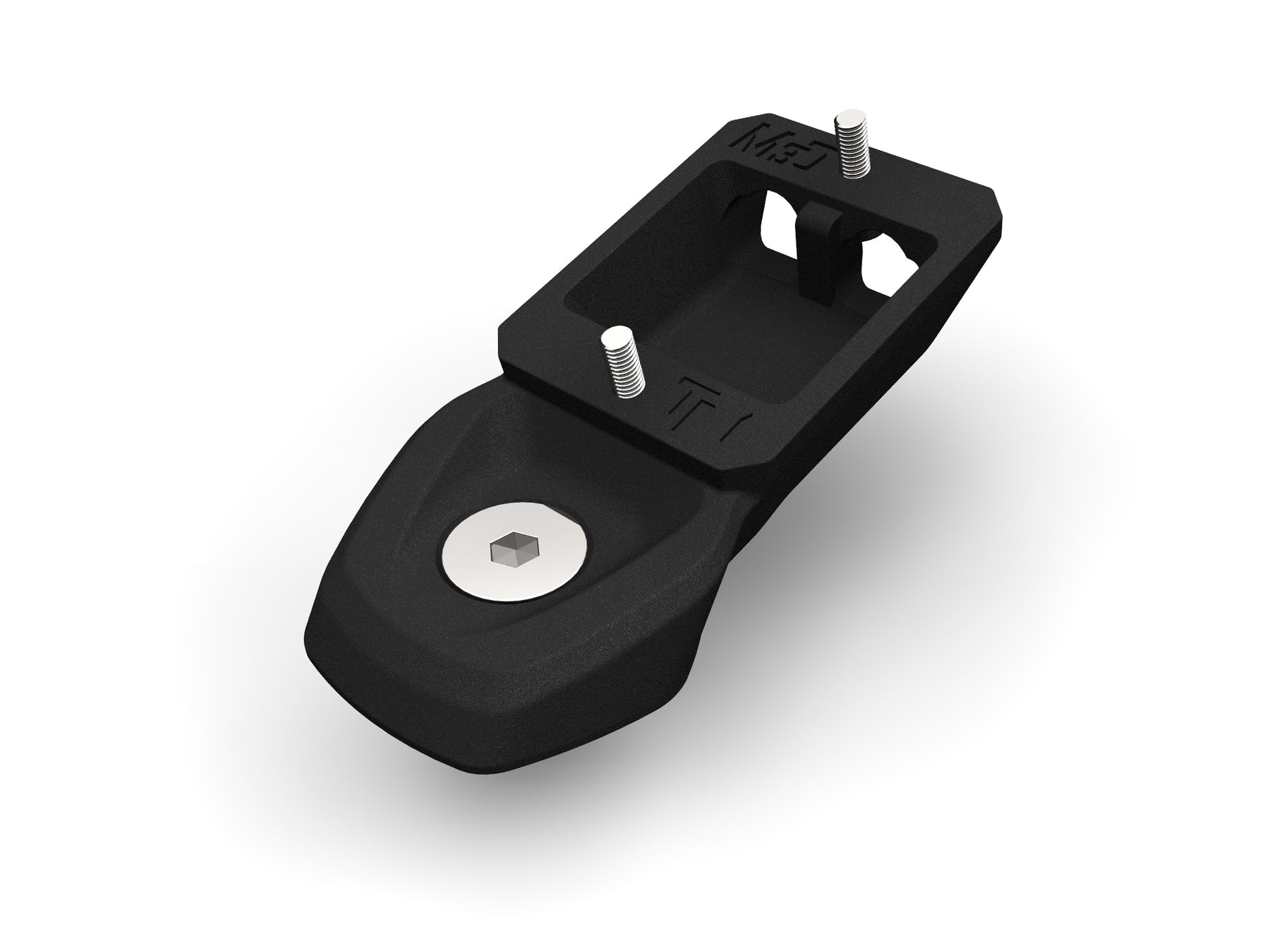

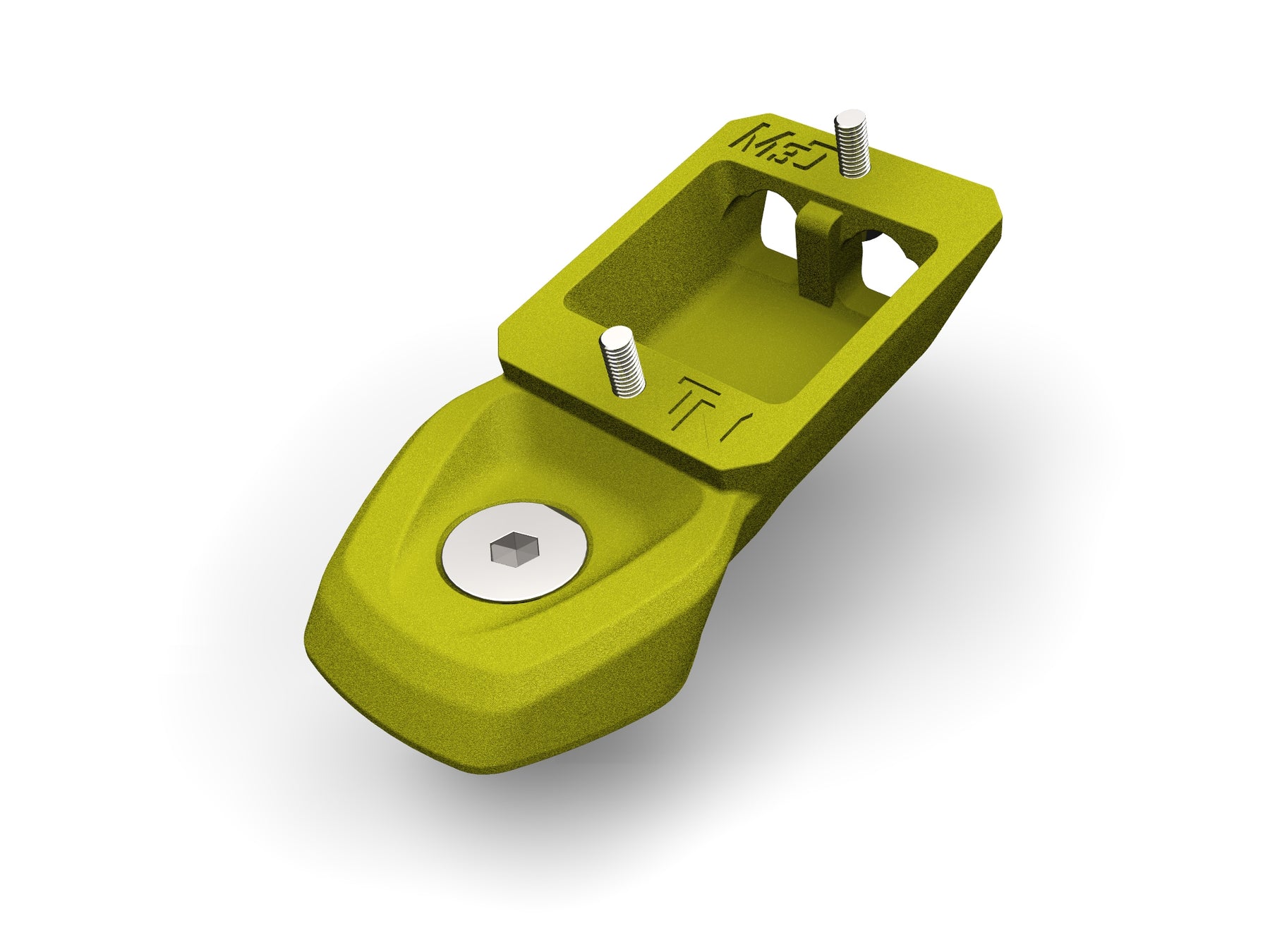

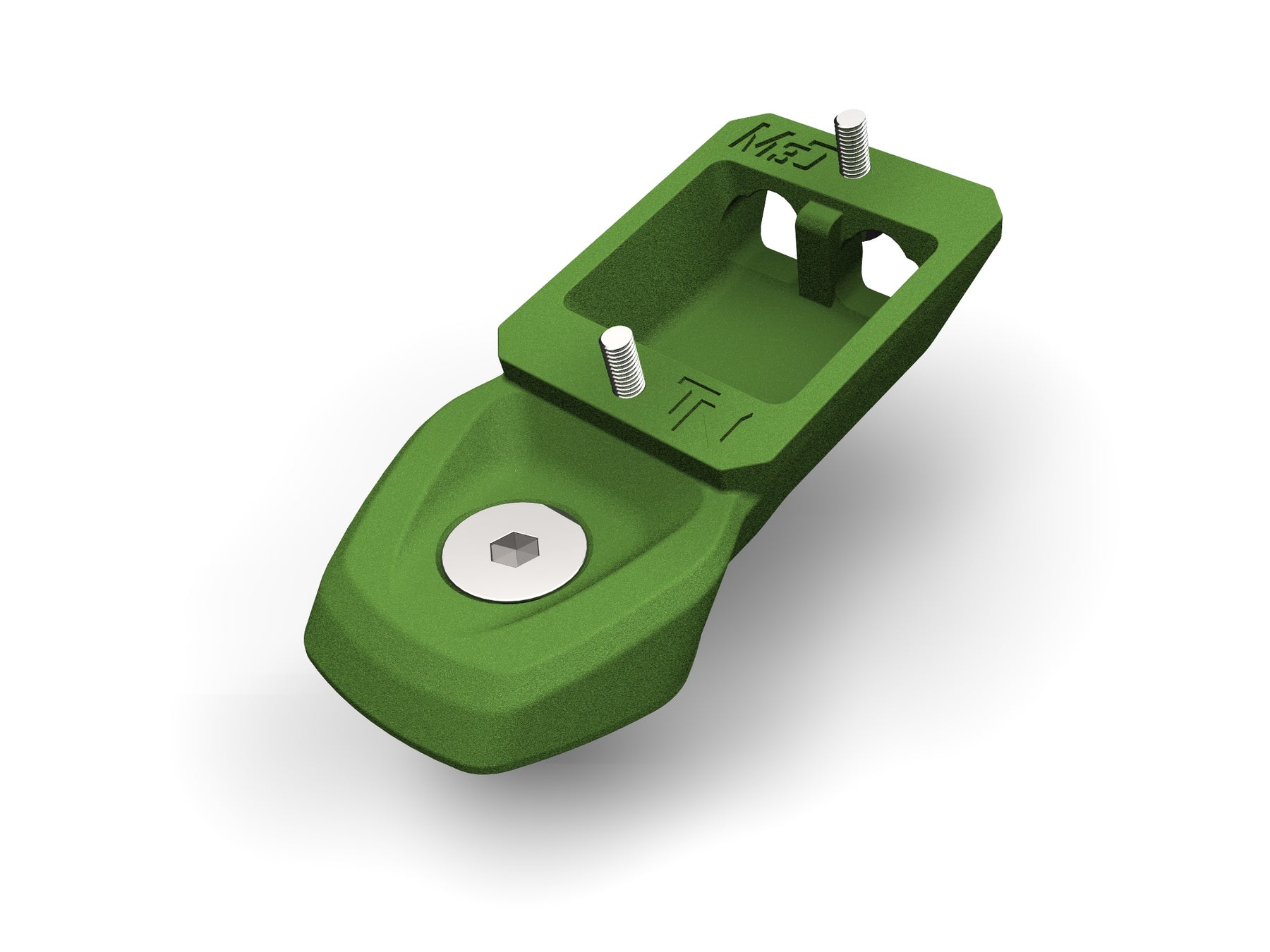

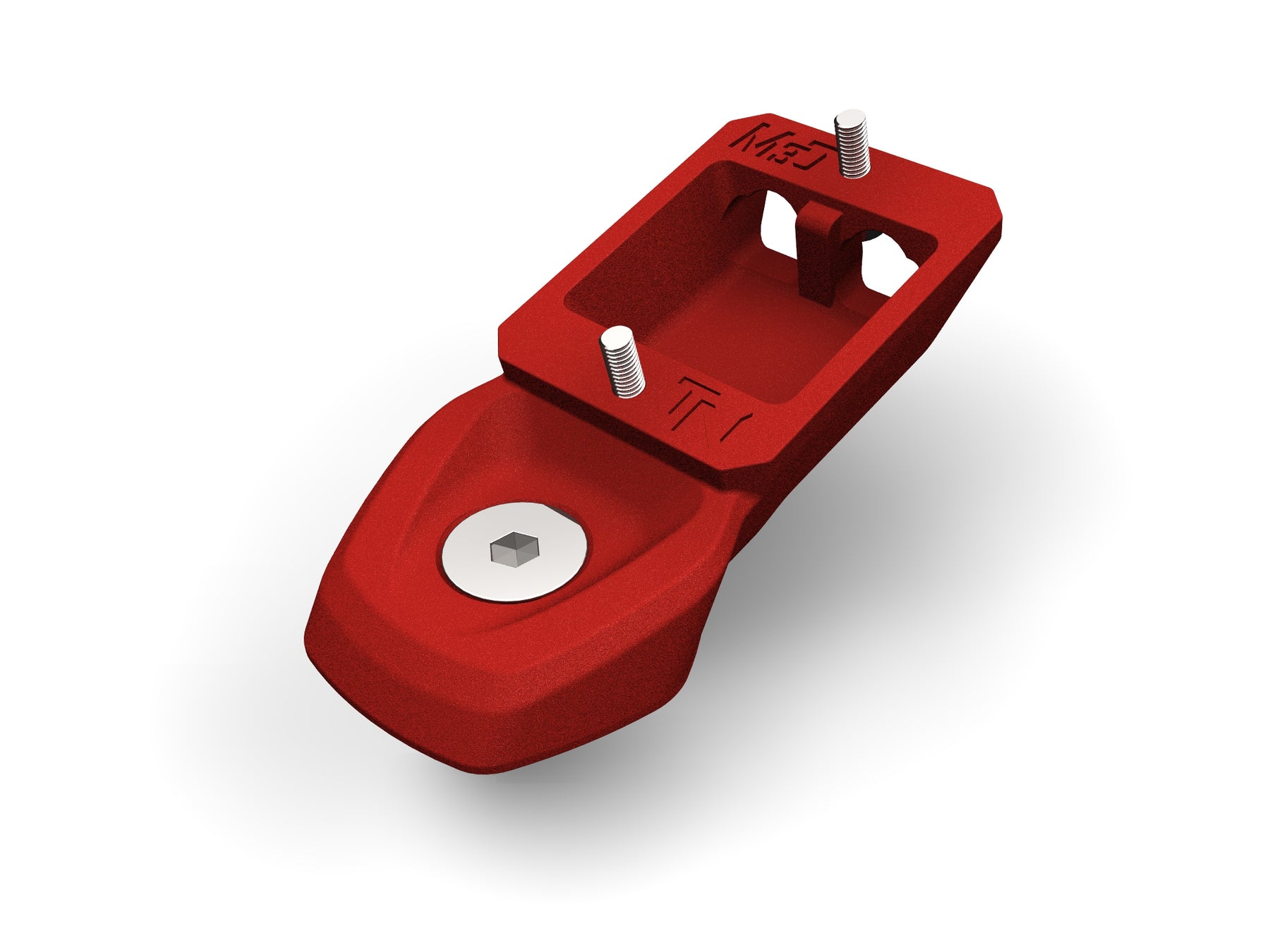

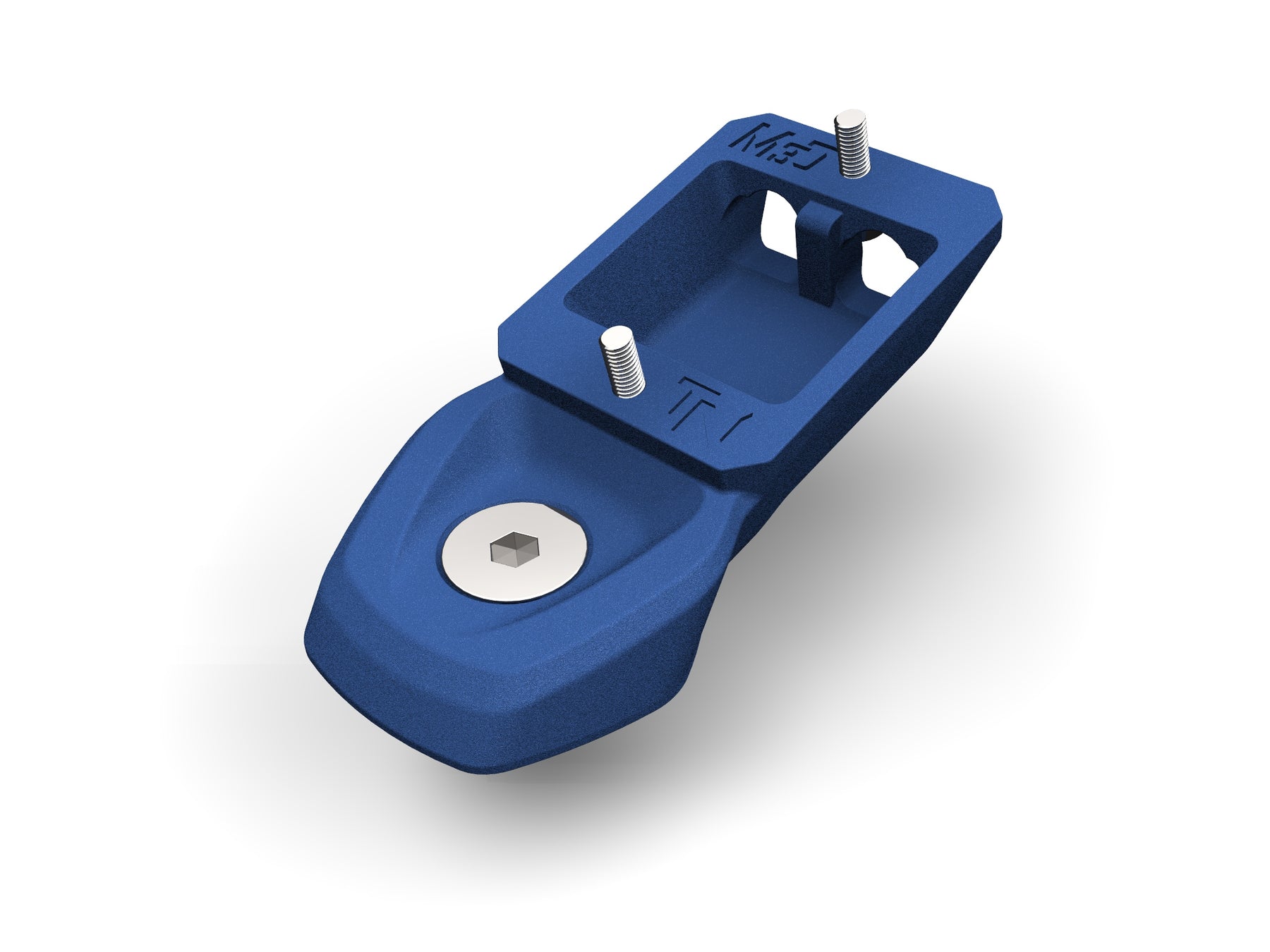

MagCAD Bosch Kiox E-Stem 300 Mount

Mount the Bosch Kiox 300 & 500 e-bike display above your stem with this MagCAD Mount.

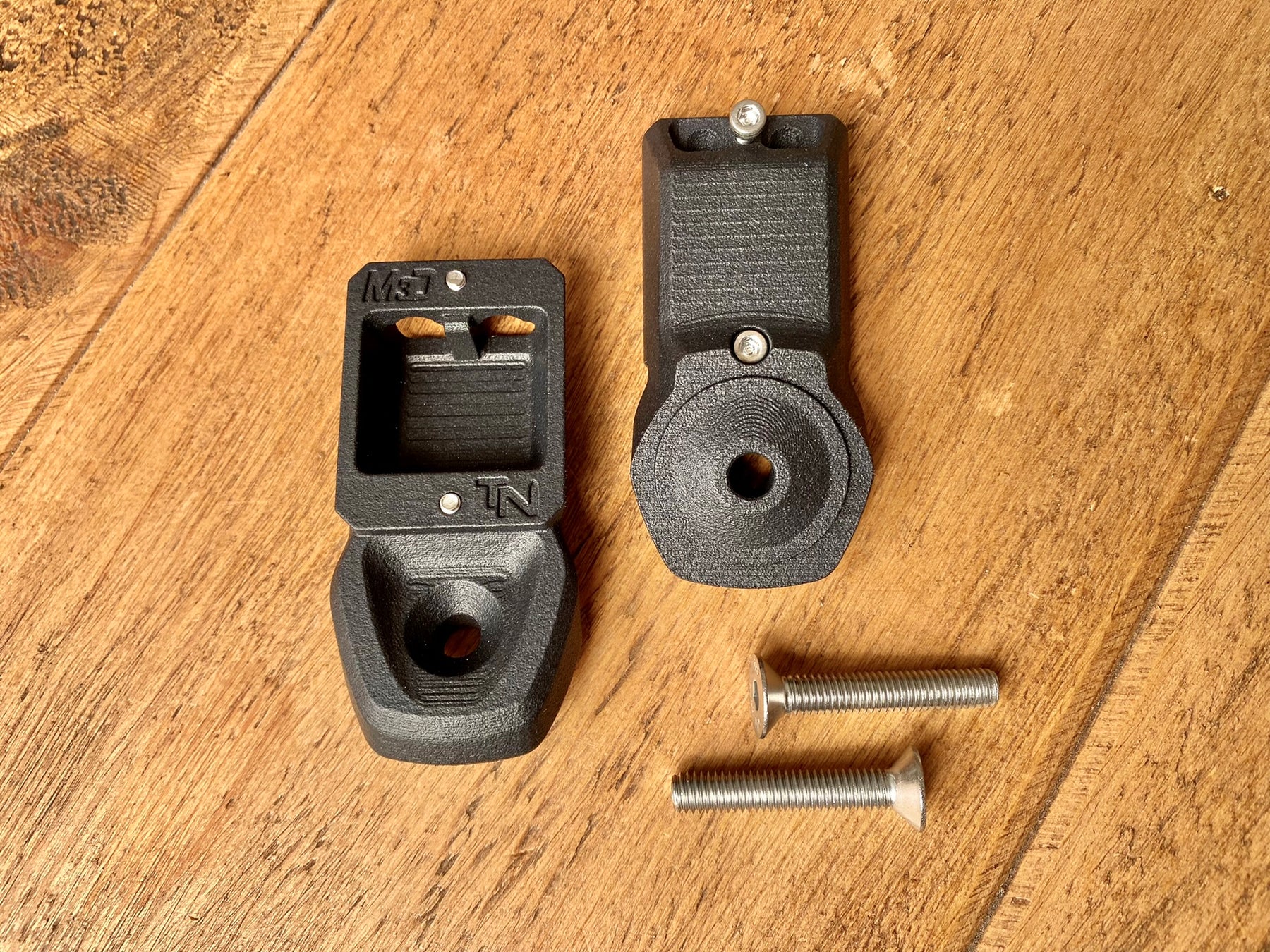

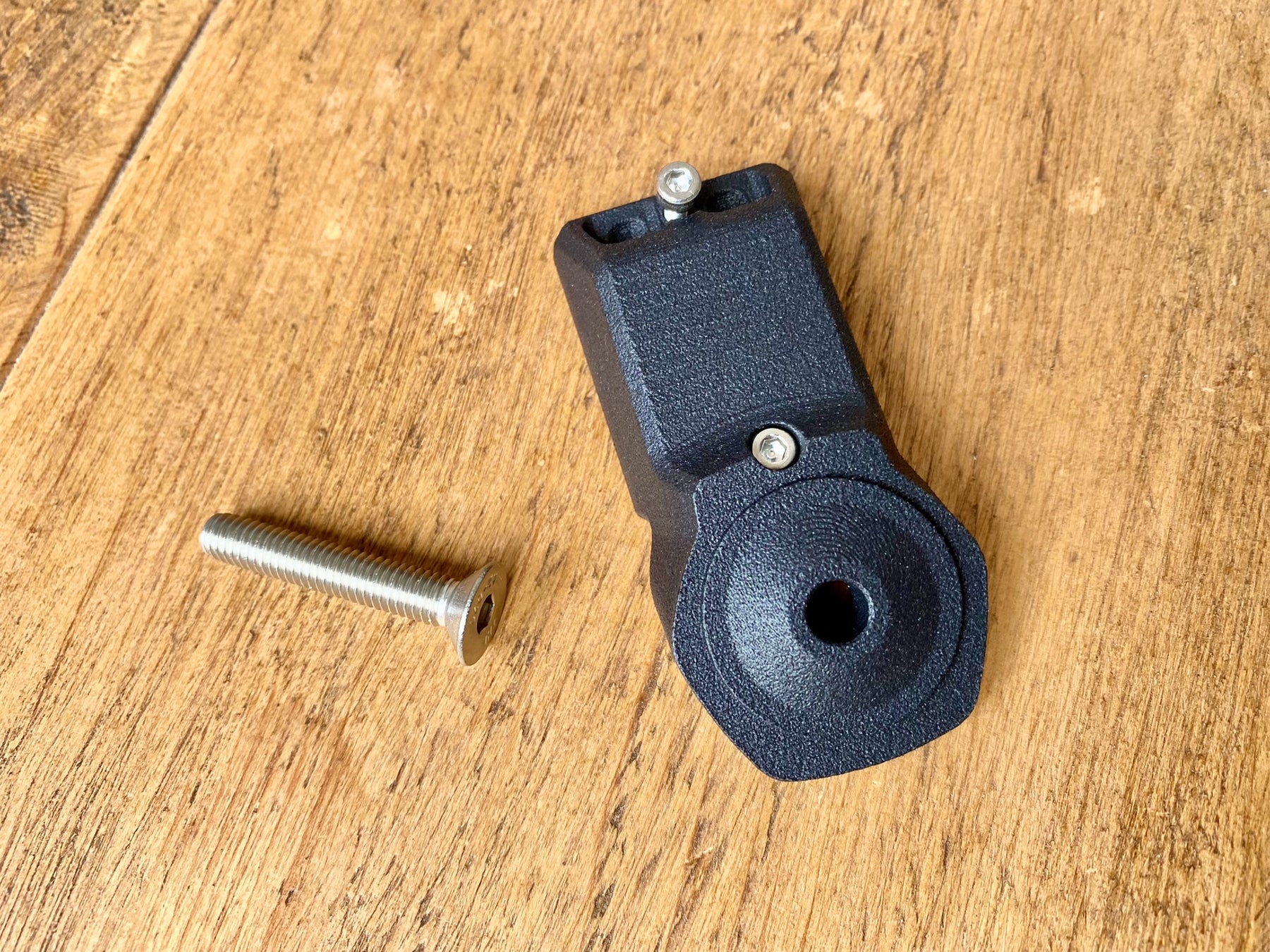

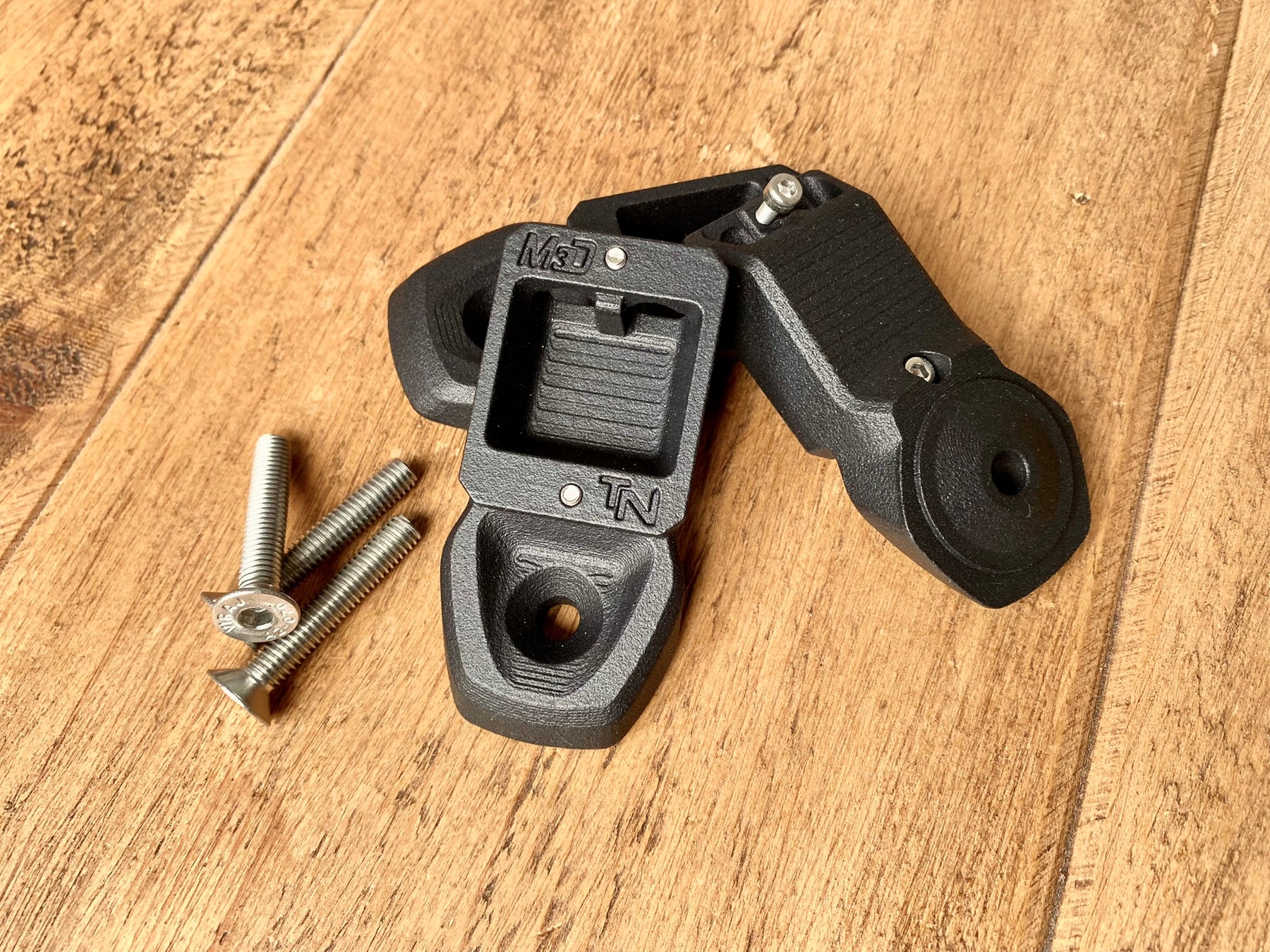

What's Included

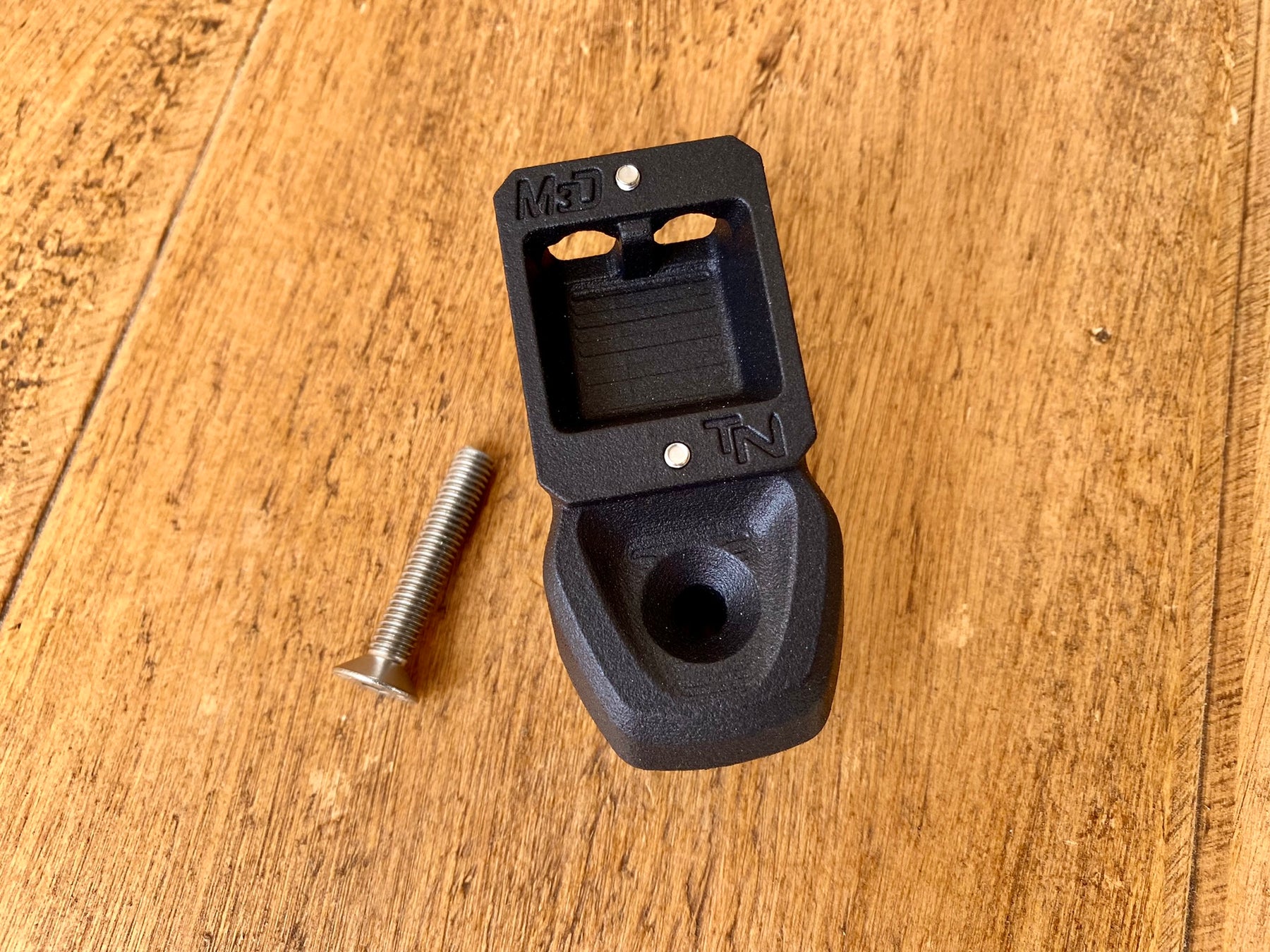

• 1x 3D printed mount.
• 2x M3x10mm cap screws.
• 1x M6x35mm countersunk screw.

Important: A Bosch Front Plug Interface (Code: EB13100009 / BDS3250) is required for this MagCAD mount. Some bikes are supplied with a Rear Plug Interface (Code: EB1310000A / BDS3210) which are not compatible and will result in the Kiox display being upside-down if fitted.

For UK customers, the Bosch Front Plug Interface can be purchased together with the MagCAD mount HERE from the team at True North Cycle Hub.

For international customers, you will need to source the Bosch Front Plug Interface from your local Bosch dealer. If in doubt, feel free to drop us a message.

Overview

This mount is the first collaboration with our friends at True North Cycle Hub in the Peak District, specialists in e-bikes and all things MTB.

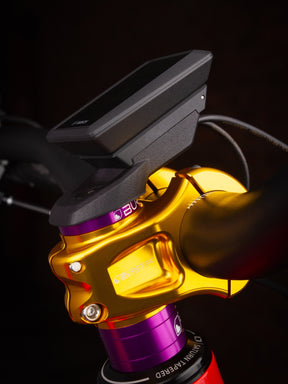

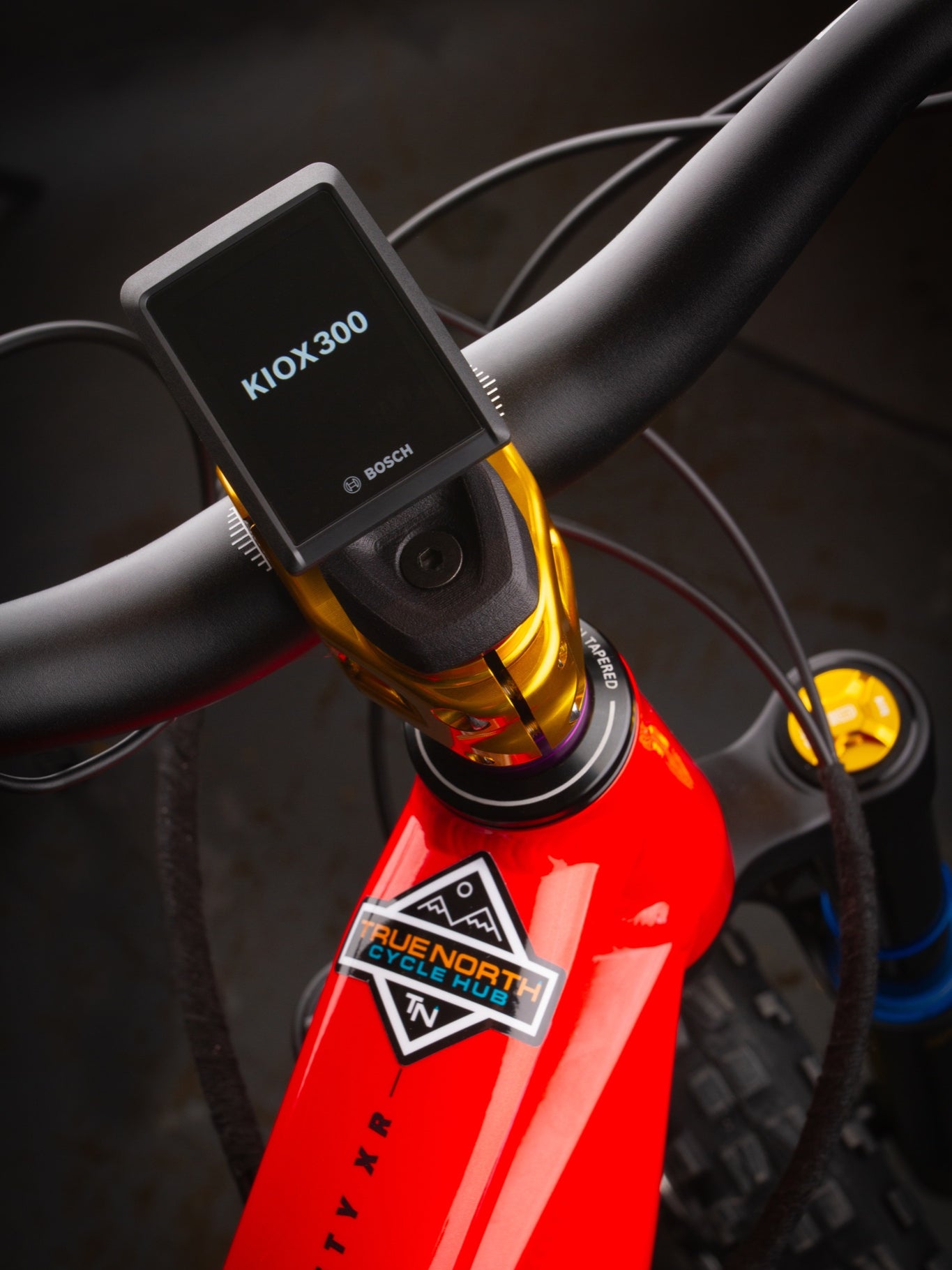

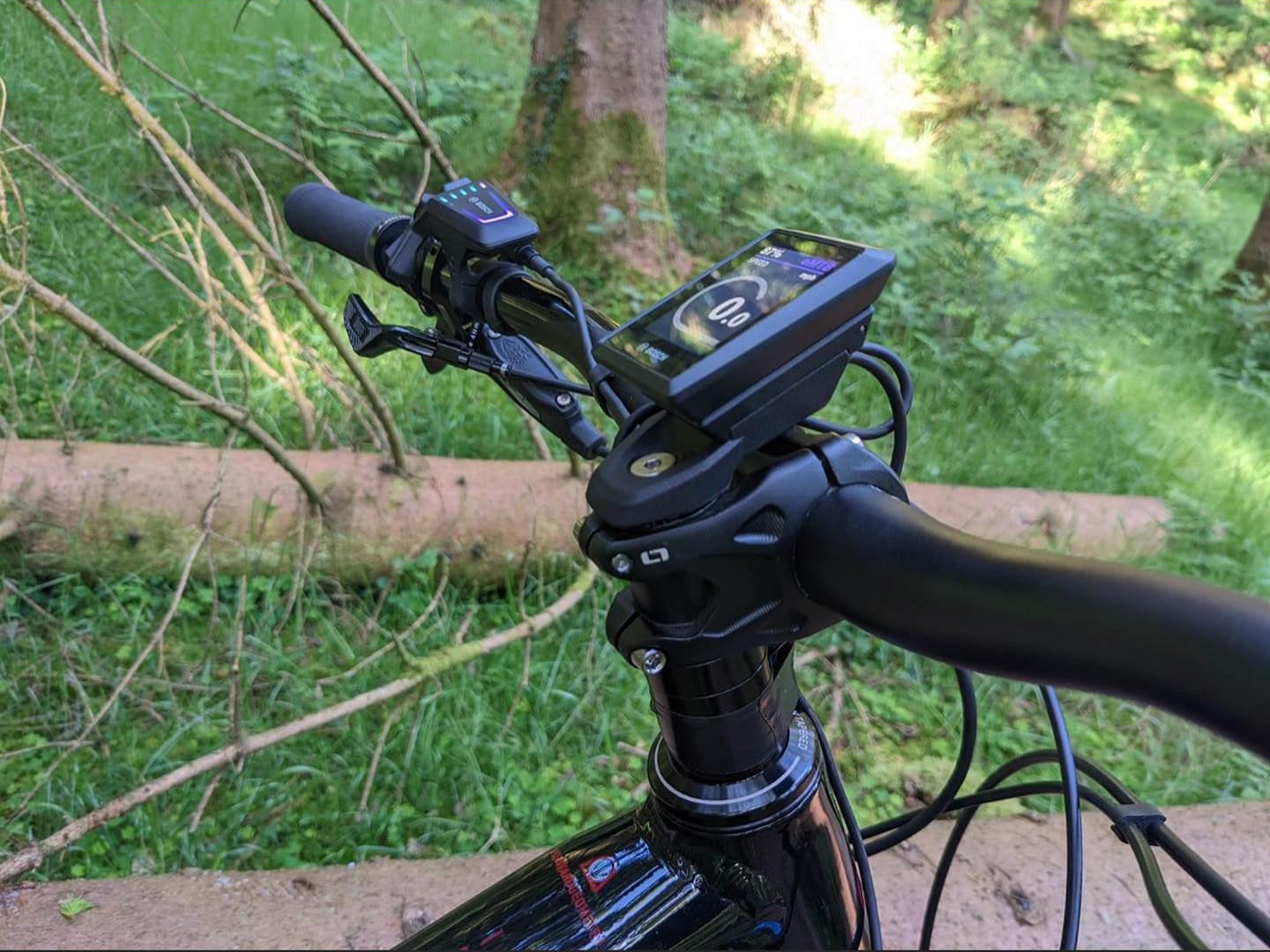

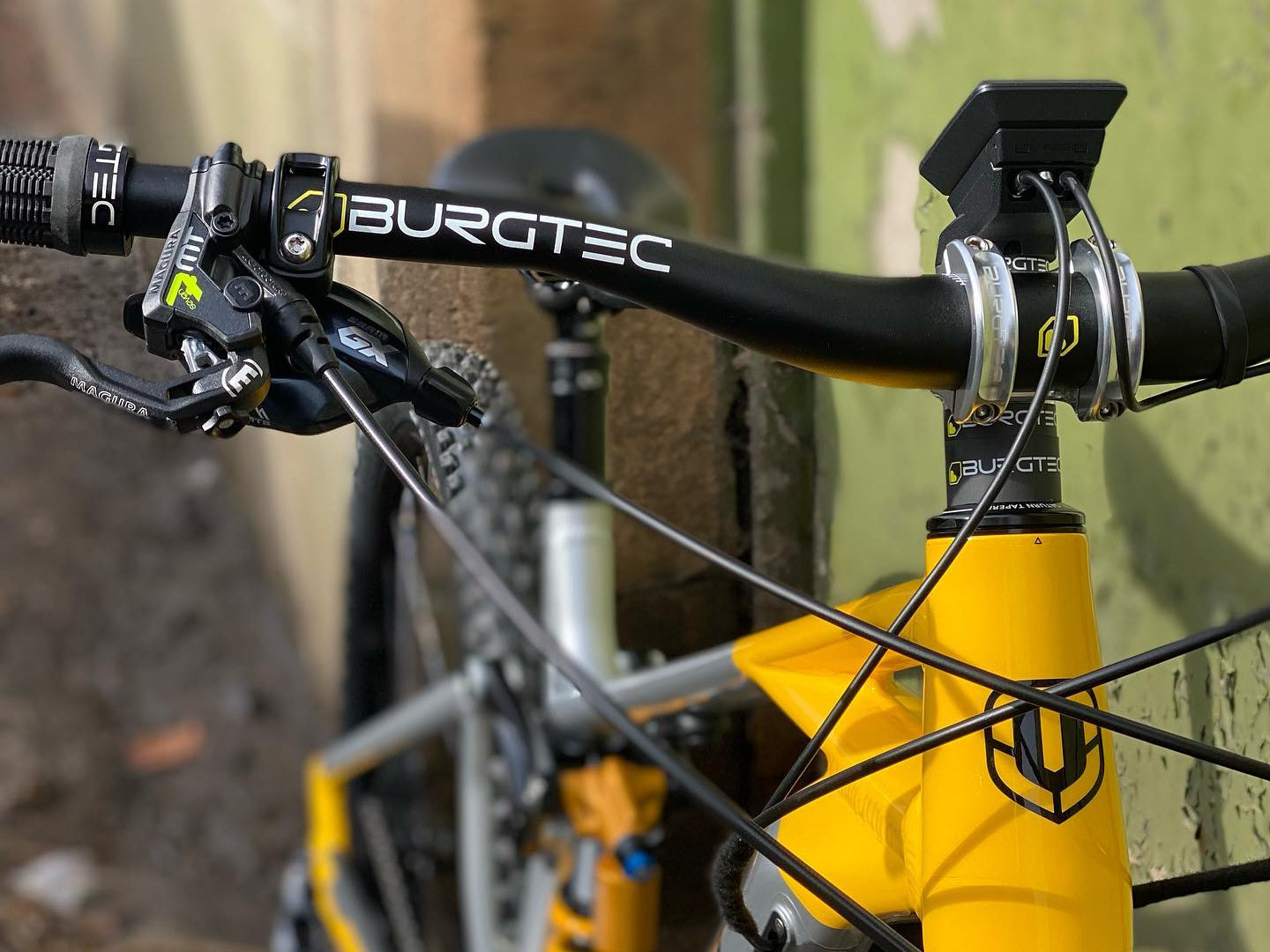

The mount allows you to position the Bosch Kiox 300 & 500 e-bike display above your MTB stem, removing the requirement for the fairly bulky and unsightly stock handlebar mount. The stem position allows clear sight of the Bosch display whilst keeping the unit better protected from dirt and debris.

Developed in some of the best and harshest MTB terrain in the UK, the MagCAD mount is extremely robust, designed to out-perform and out-last other display mounts and keep your device secure.

Application

This MagCAD mount has been designed to suit as many MTB stems as possible, irrespective of stem length or angle. The mount can be fitted directly on top of the stem or position raised with a steerer spacer underneath.

To fit the MagCAD mount follow the below instructions. As with any steering related component they should be installed by a competent mechanic and inspected regularly. Incorrect assembly or mis-use may result in damage to the headset components.

Removing and separating the Bosch Front Plug Interface:

1. Remove the Bosch Kiox 300/500 display from the OEM handlebar mount with a pull down and off motion.
2. Remove the OEM handlebar mount from your bike by loosening and removing the securing screw.
3. Separate the Bosch Front Plug Interface from the OEM handlebar mount by loosening and remove the two M3 screw in the back of the mount. The Interface product code can then be checked.
4. The OEM handlebar mount is no longer required. The Bosch Front Plug Interface will be attached to the MagCAD mount.

Assemble the MagCAD mount:

1. Fit the Bosch Front Plug Interface to the MagCAD mount with cable ports exiting the front of the mount. Torque tighten the 2x M3 cap screws (supplied) to 1Nm, through the rear of the MagCAD mount.

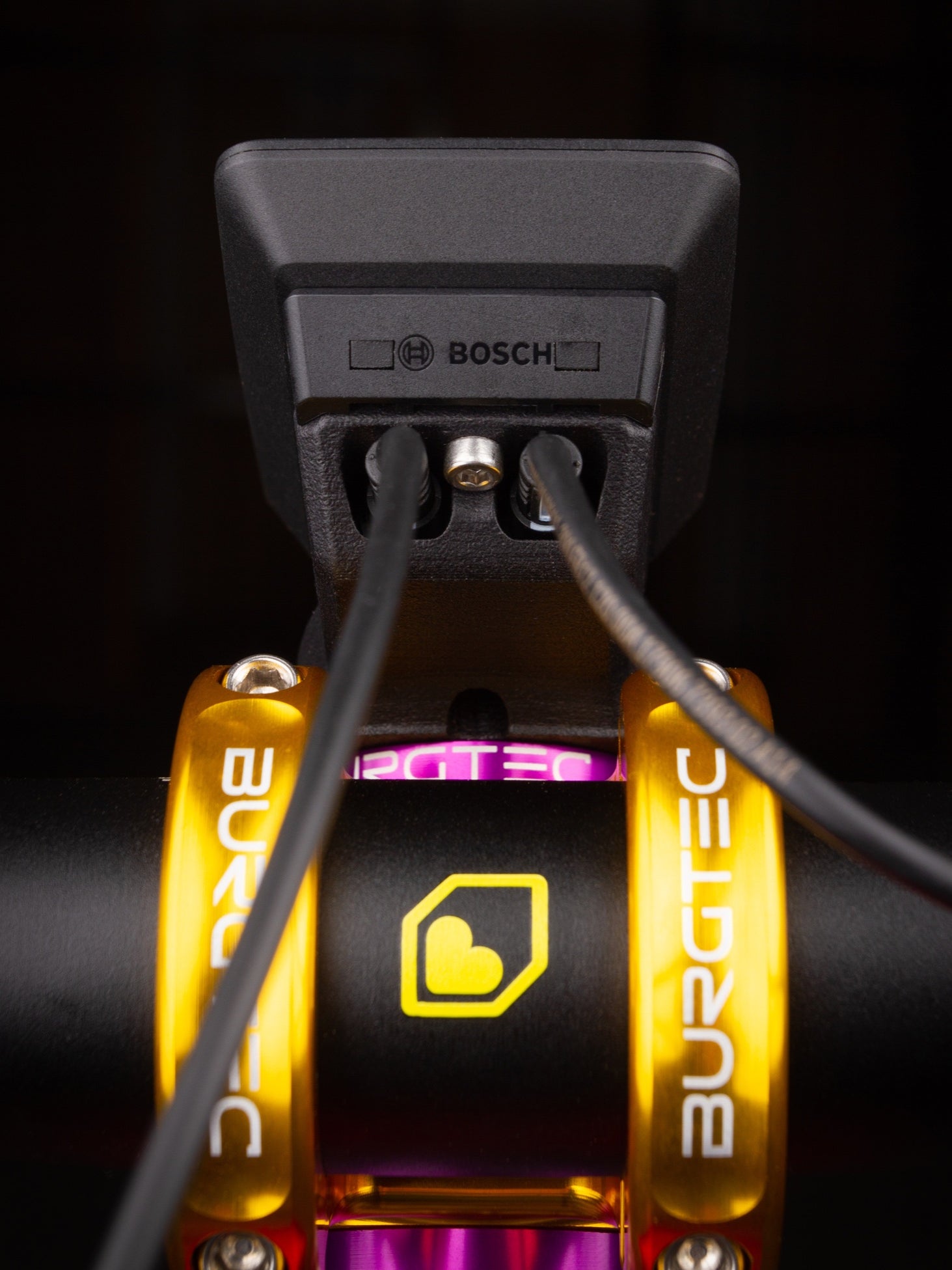

2. Route the two Bosch cables into the MagCAD mount assembly, position the mount on top of your headset/stem assembly and check there is sufficient length with your handlebars on full lock both ways. Longer cables can be purchased from your local Bosch dealer.

Fixing the MagCAD mount to your top tube:

1. The MagCAD mount can be fitted without disturbing the current headset bearing preload. To do so simply loosen and remove the stem top cap without loosening the stem clamp bolts.
2. If the stem clamp bolts are loosened or your headset assembly needs adjusting please follow your manufacturers instructions carefully with the MagCAD mount in place of your existing top cap.
3. Remove your existing top cap and bolt, these are no longer required.
4. Fit the MagCAD mount and supplied M6 countersunk screw.
5. Check the MagCAD mount sits flush on top of your stem. If required additional spacers can be positioned between the MagCAD mount and stem.
6. Align the MagCAD mount and handlebars with your front wheel.
7. Torque tighten the M6 countersunk screw following the normal manufacturer's instructions or until all play is removed from your headset bearings, without overtightening. Typically this torque value is around 1-1.5Nm but should not exceed 3Nm.

8. Attach your Bosch Kiox 300/500 display in the same way you did before, hook the display over the top of the interface before pulling down and securing the bottom.

Compatible With:

• Bosch Kiox 300/500 Display.

Specifications

• Weight: 15 grams (without hardware).
