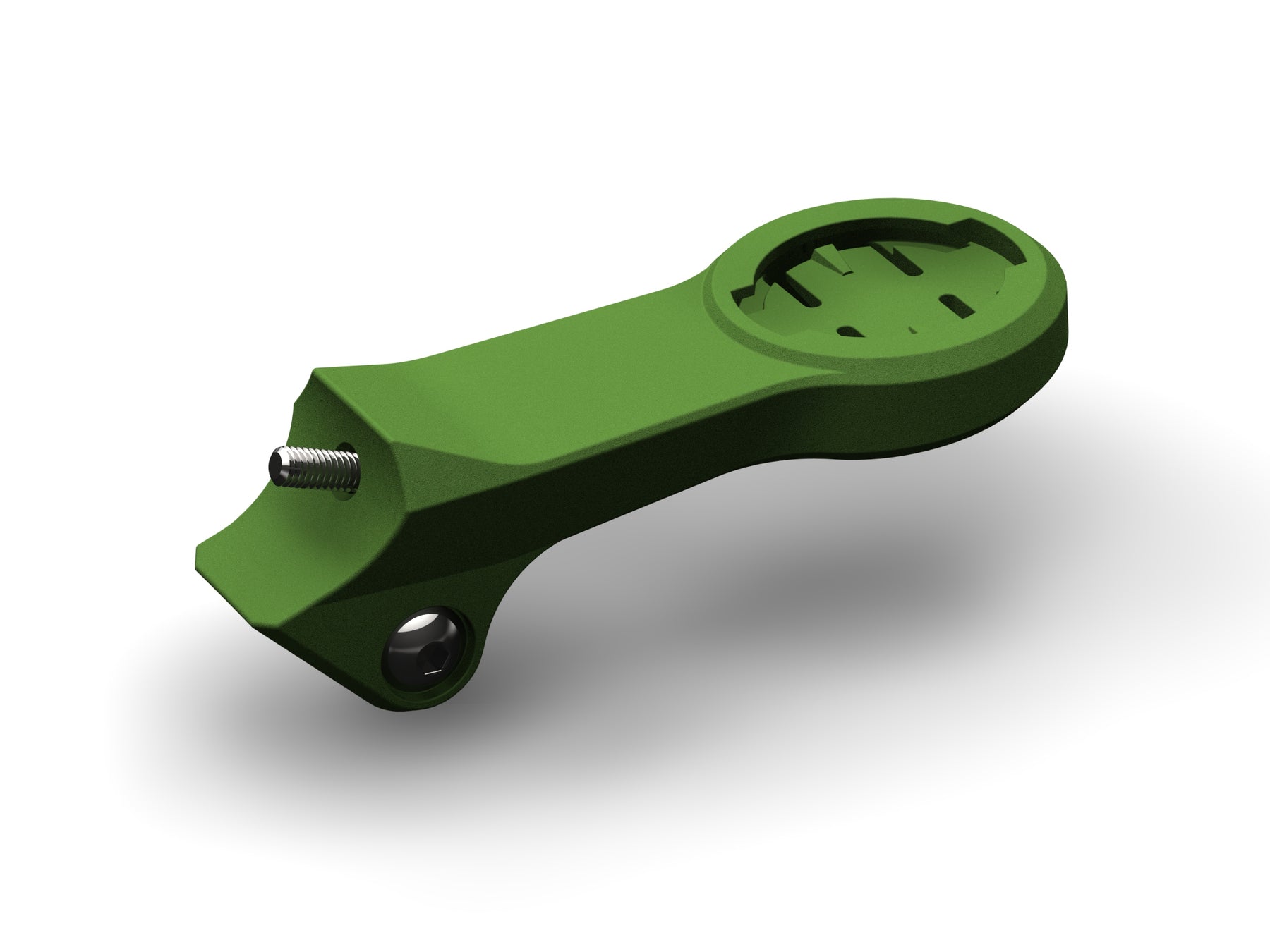

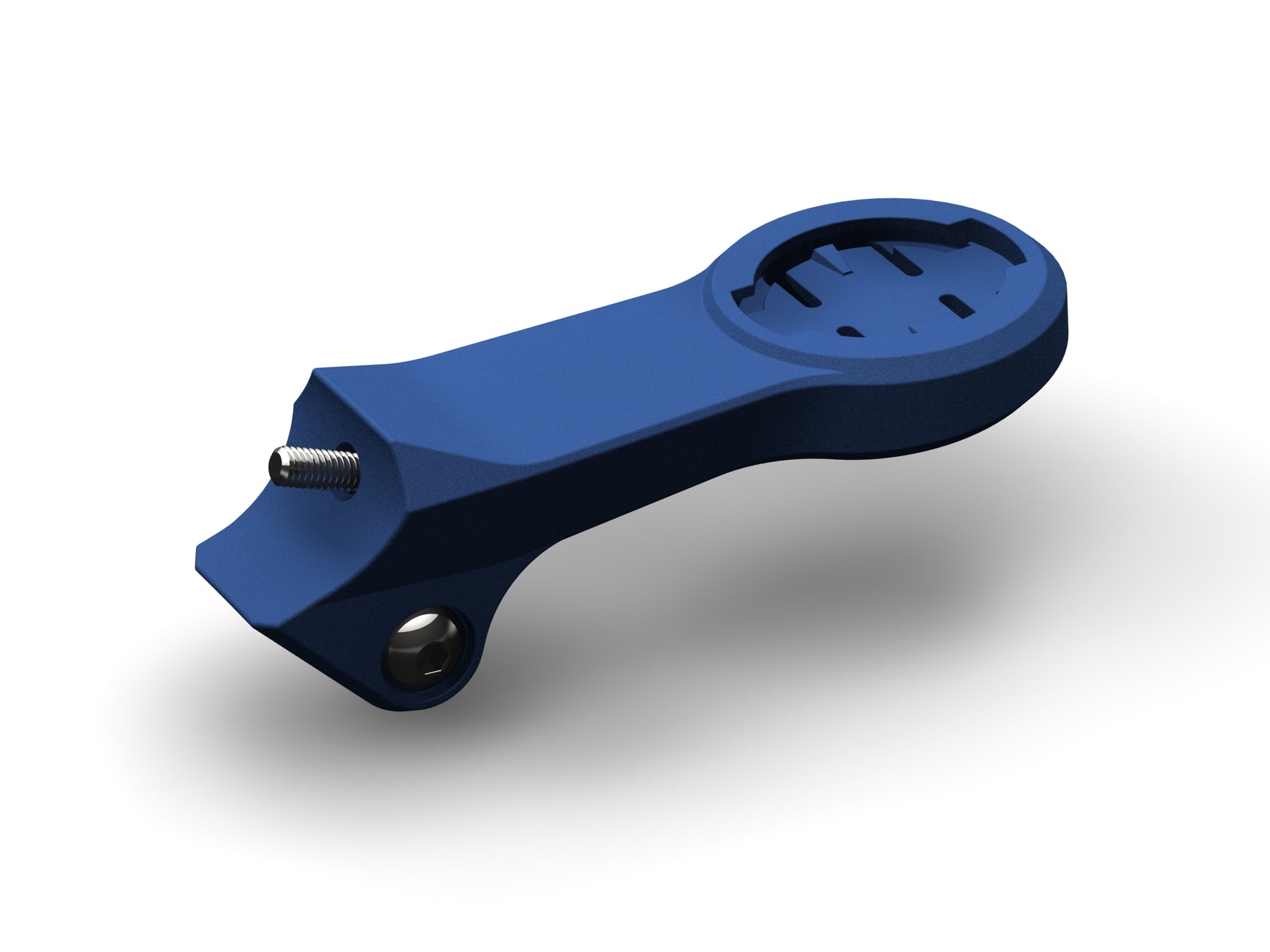

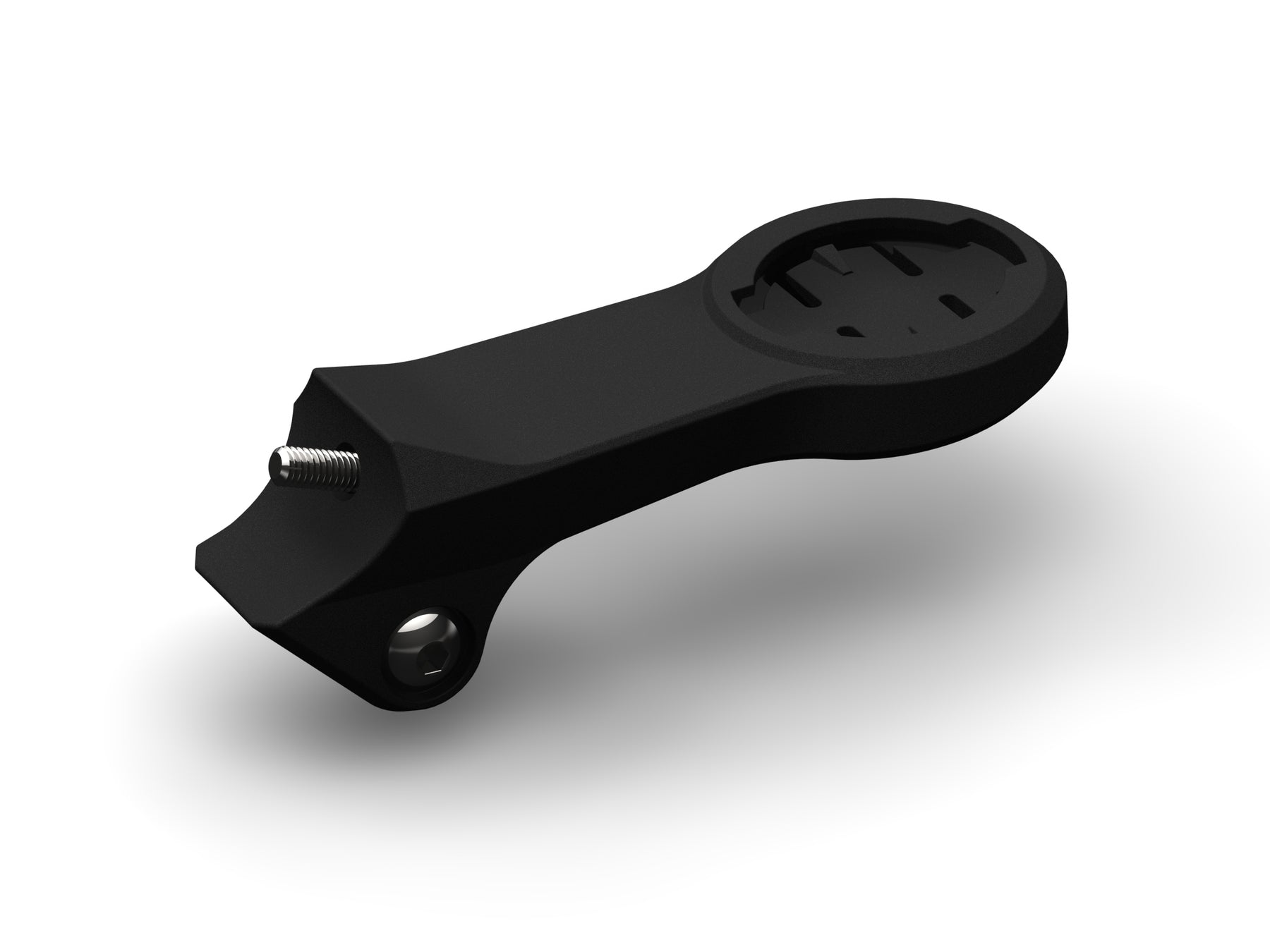

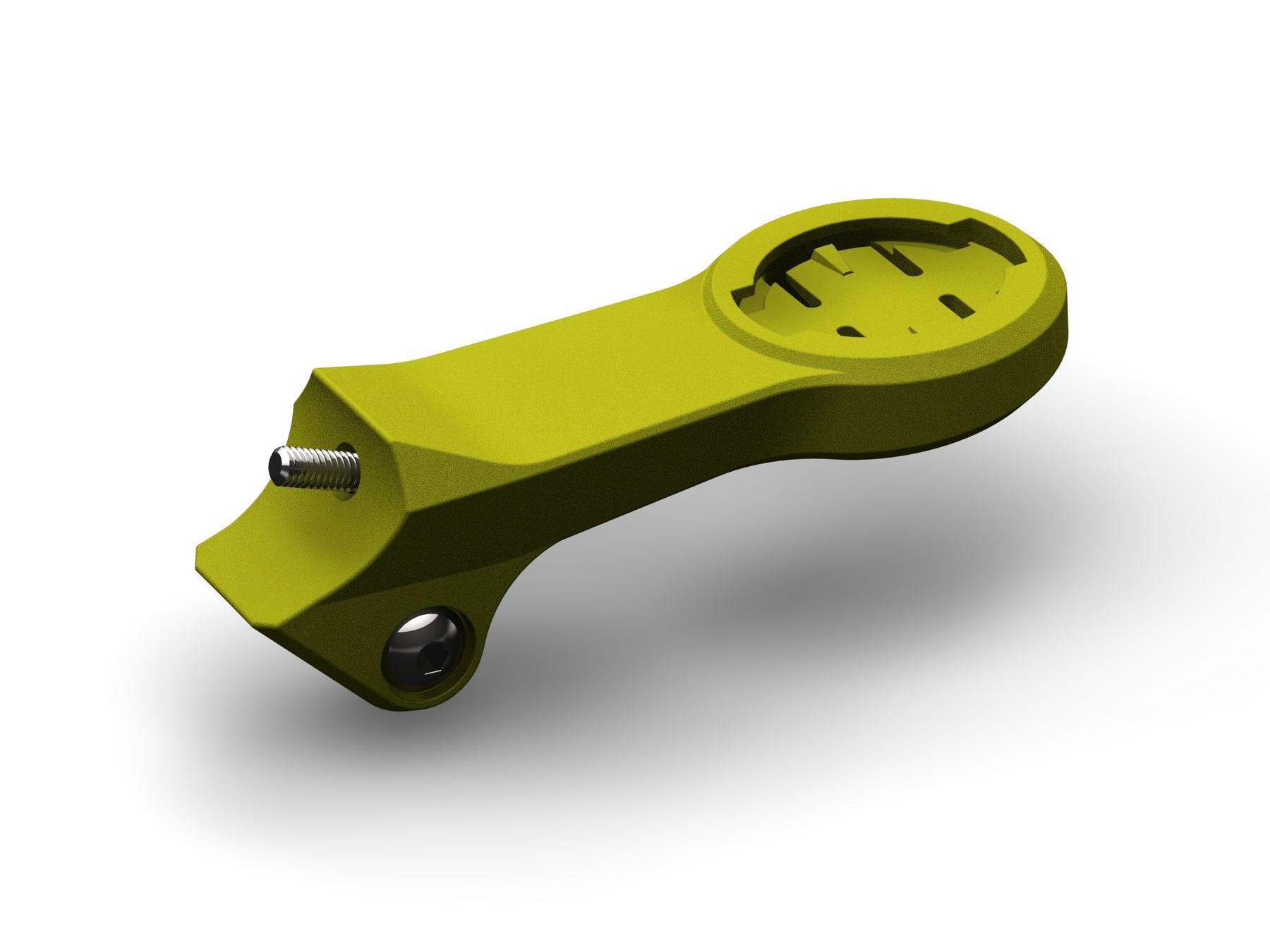

Mount your Garmin Edge 1030/1040 computer in front of your Roval Rapide integrated cockpit with this MagCAD mount.
- 1x 3D printed mount.
- 1x M4x20mm (titanium) cap screw.
- 1x M5x20mm (stainless steel) button head screw.
- 1x M5 (stainless steel) dome nut.
The Garmin device and Roval handlebars are pictured for reference only and not included.
This mount is a slight variation of our very popular Garmin 1040 Specialized Mount and Garmin 1040 Roval Alpinist Mount, subtly modified to fit the latest Roval Rapide cockpit. The design is specific to the Roval Rapide cockpit; featuring a lower device position, reduced frontal area and modified contacting face.
The mount is extremely strong and stiff, keeping your device securely positioned in front of your handlebars. It weighs 29 grams (with hardware) compared with 52 grams for the OEM Garmin GoPro Roval Mount, a 23 gram (44%) weight saving.
The MagCAD Garmin 1040 GoPro Roval Rapide Mount is designed to suit the largest Garmin Edge 1030 & 1040 devices but will work with all Garmin Edge devices. Please note there is a shorter version of this mount designed for the smaller Garmin Edge devices.
A GoPro lug has been added underneath for maximum flexibility, allowing you to mount additional devices such as cameras and lights underneath your computer without cluttering the rest of your handlebars. This version mount has the GoPro lug positioned further back to improve mount strength and offer a better position for front lights.
Please note this mount will not fit the Roval Alpinist cockpit.
Fitting the MagCAD mount is a simple process. Simply screw the mount into the threaded insert on the underside of your Roval Rapide handlebars and tighten to 2.7Nm (torque specified by Specialized). We recommend using a thread locking compound before installing the screw and periodically check the screw remains tight and secure.
Our Roval Rapide combination mounts are now supplied with a titanium M4 screw to secure the mount to the handlebars, improving strength over the OEM Roval mount.
Please Note: When mounting multiple devices off one mount we recommend using a tether just for extra security.
- All Garmin Edge devices.
- Action cameras and lights with a GoPro type mount.
- Roval Rapide integrated cockpit.
- Weight: 23 grams (without hardware), 29 grams (with hardware).
