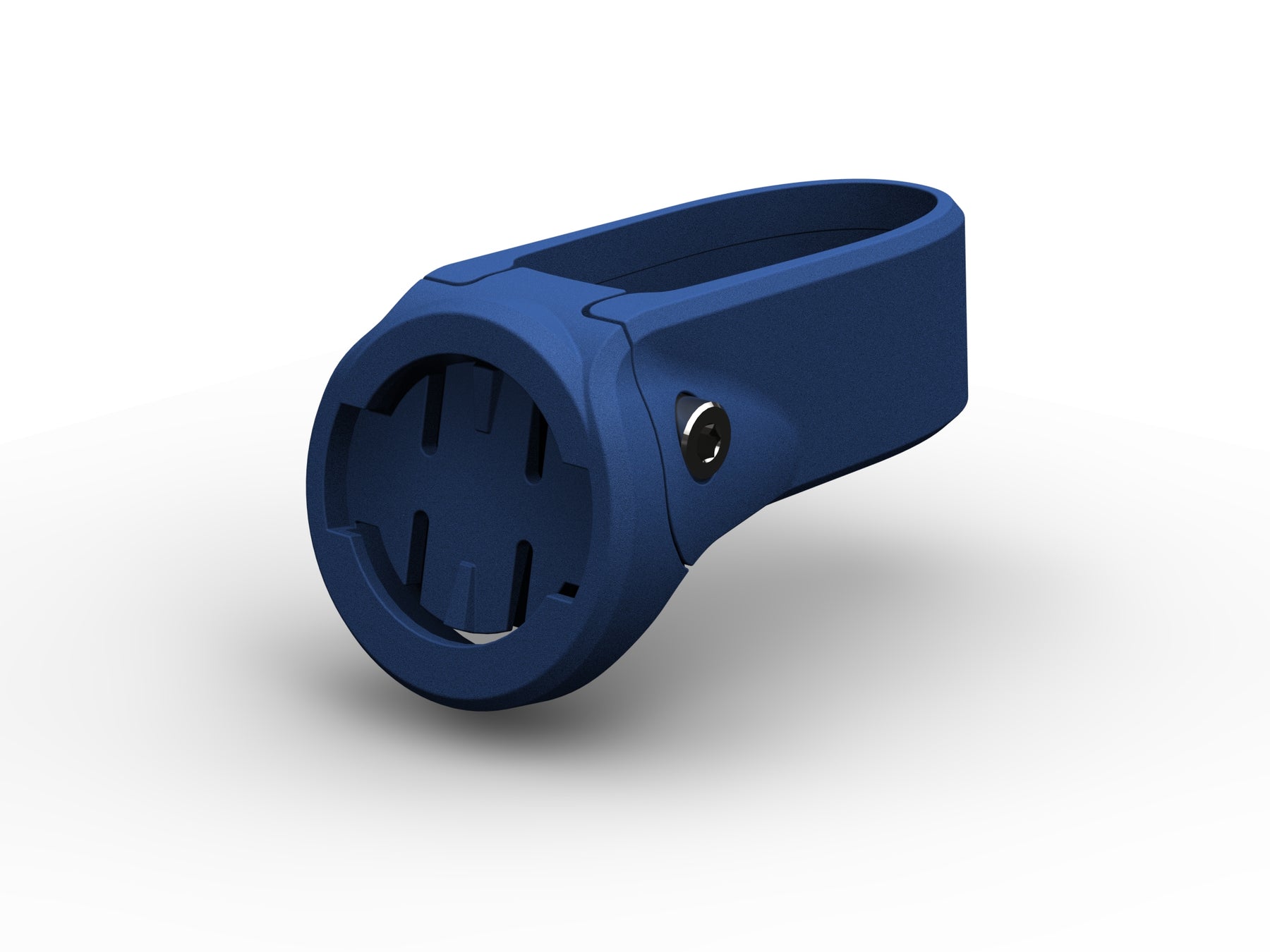

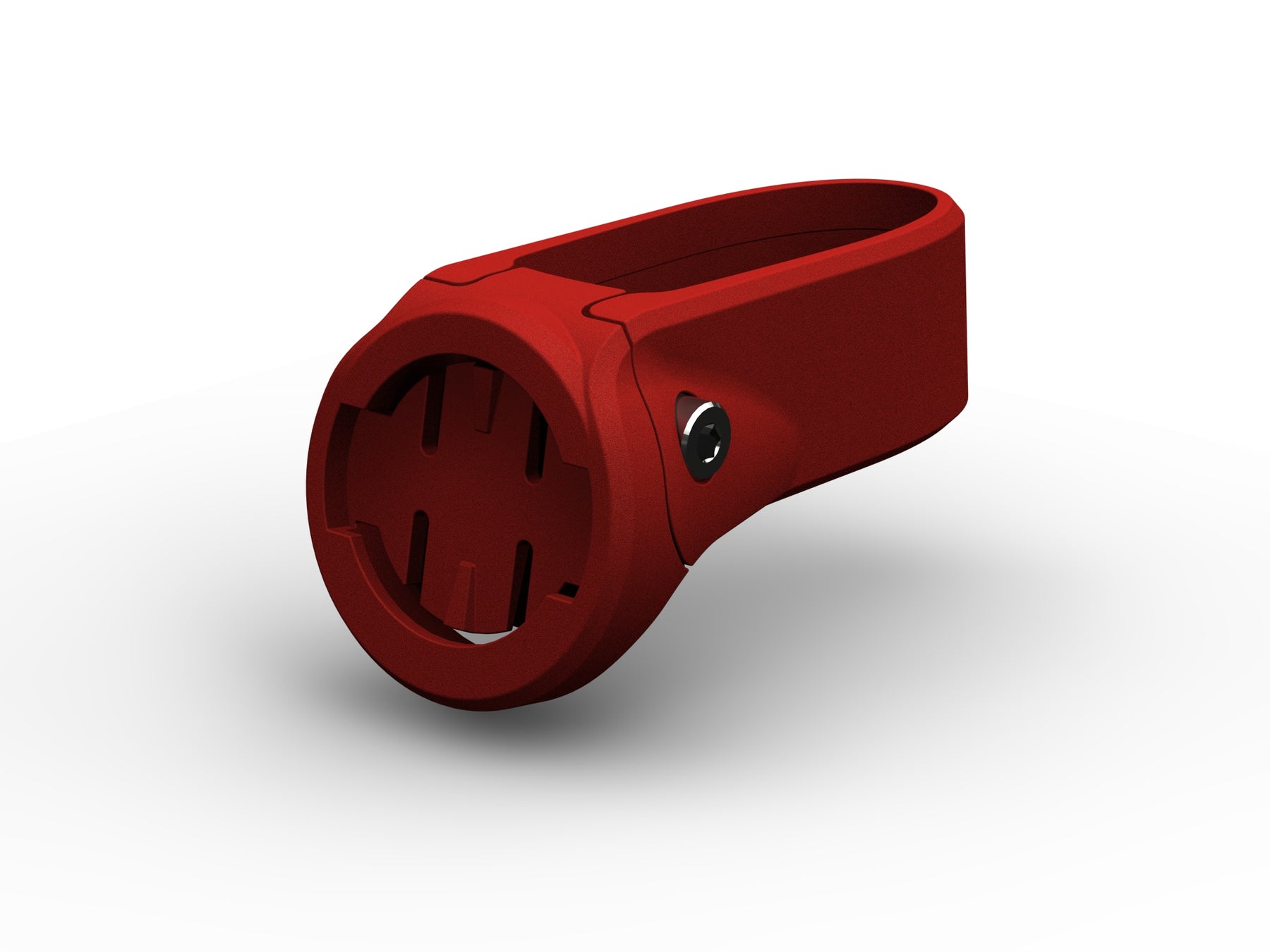

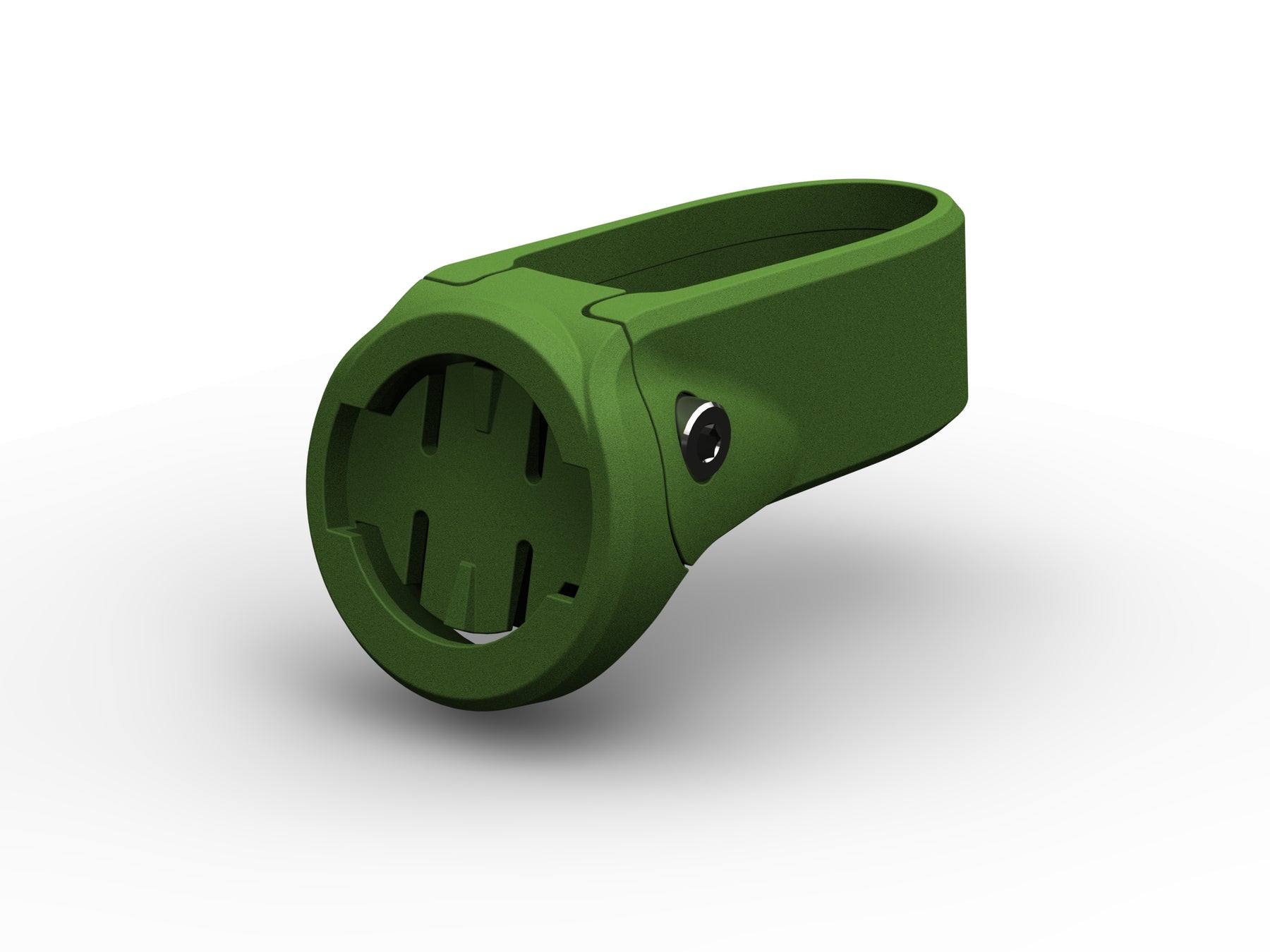

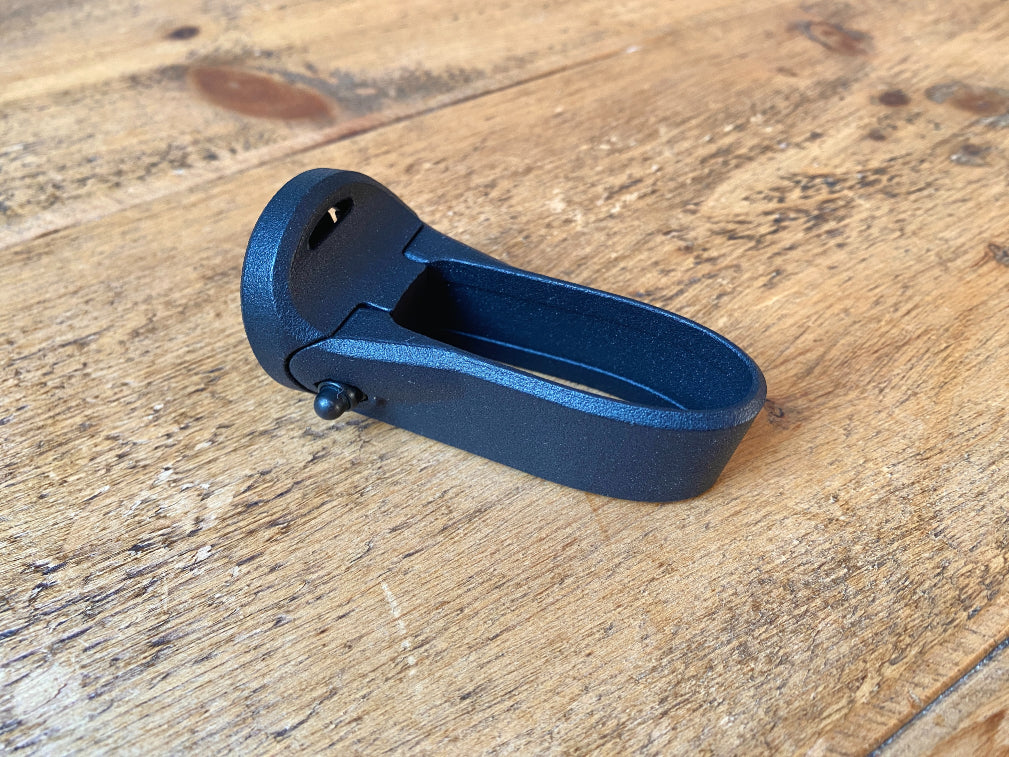

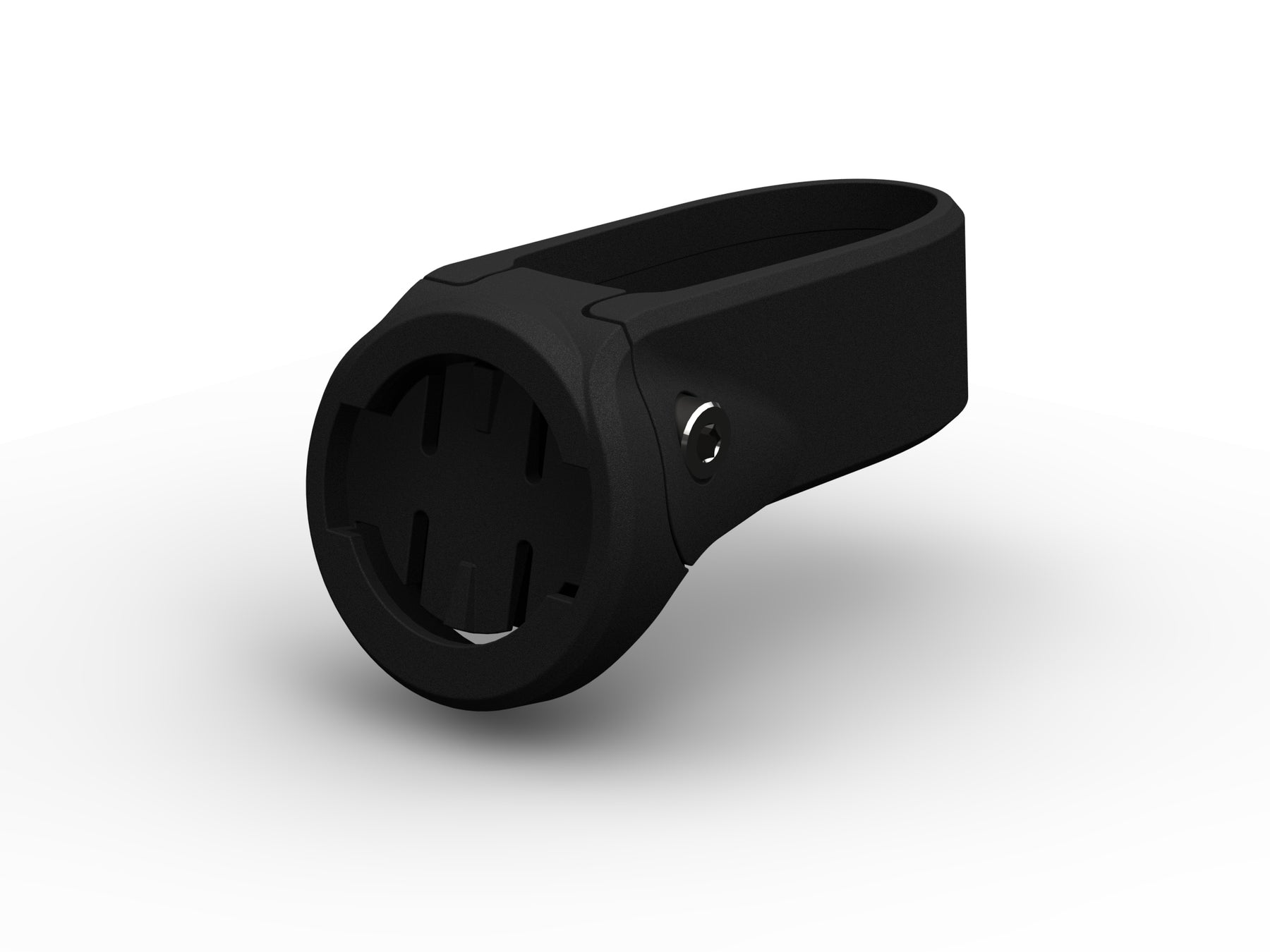

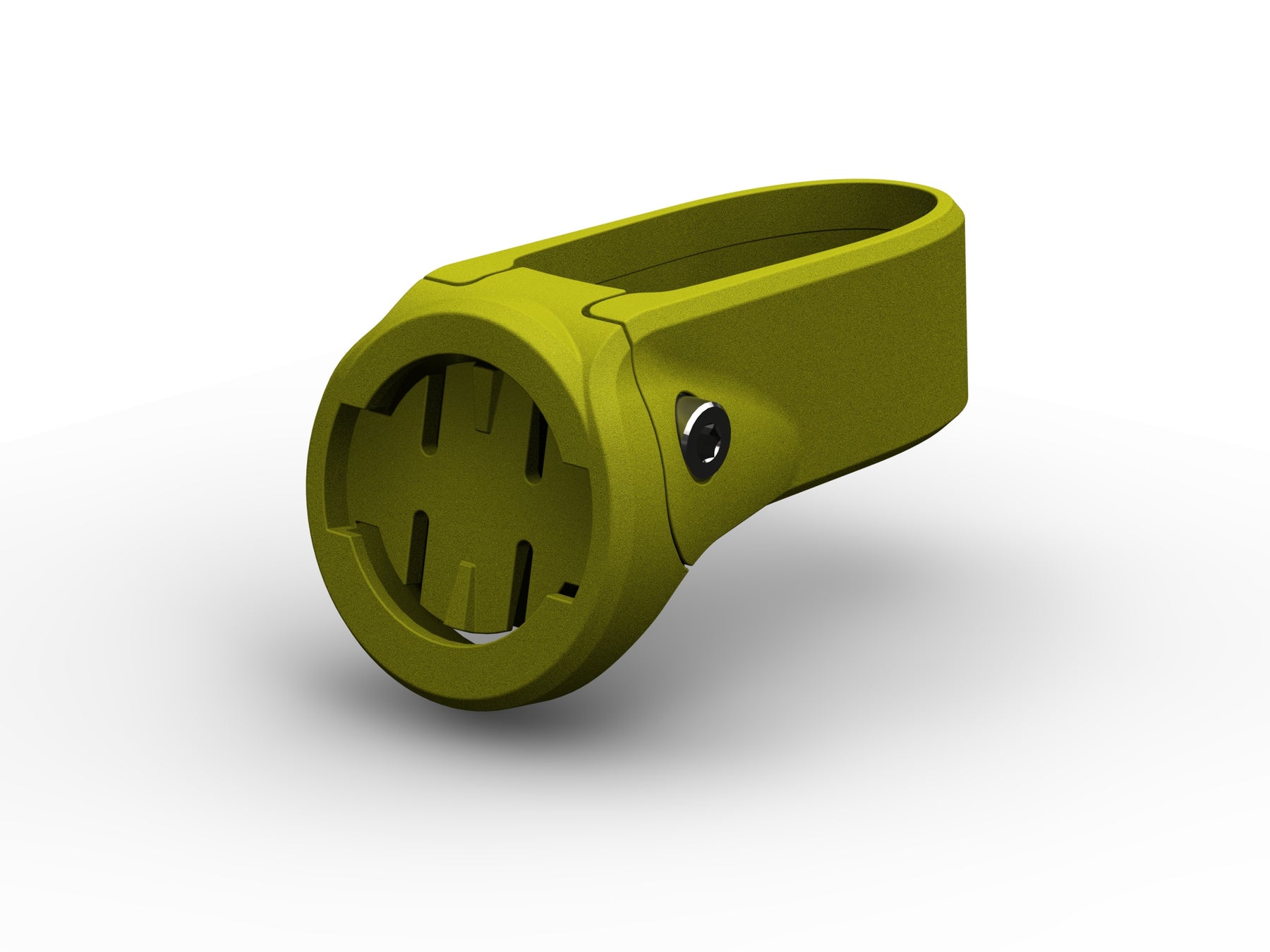

MagCAD Garmin Varia Specialized Venge Seat Post Clamp Mount
Mount your Garmin Varia rear radar light to your Specialized Venge / Shiv TT seat post with this MagCAD mount.

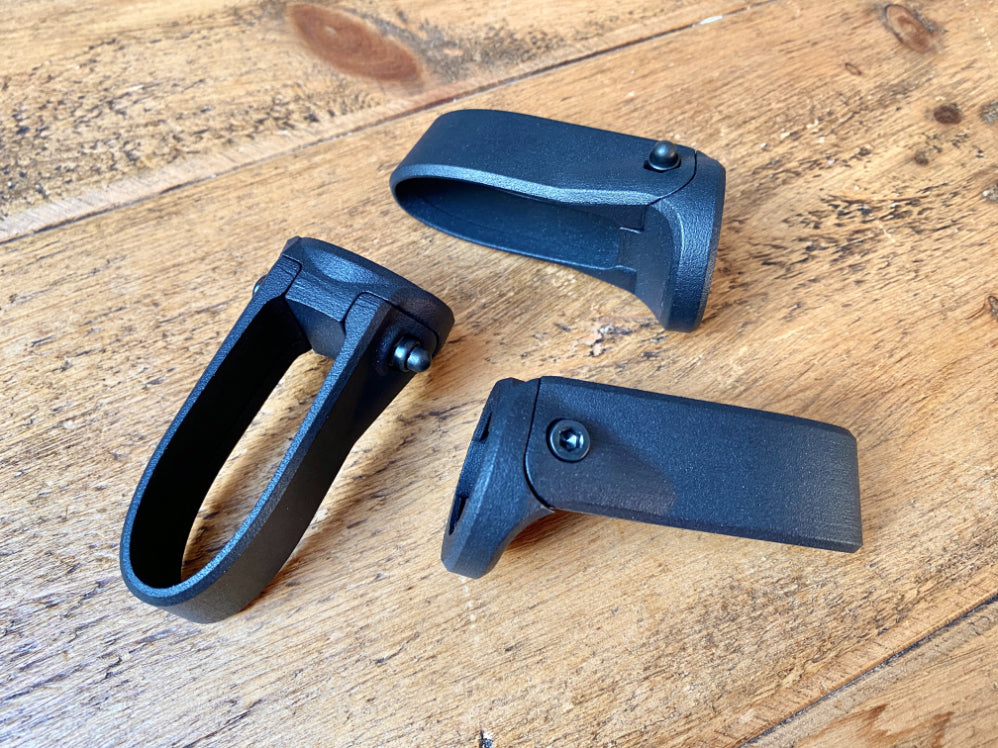

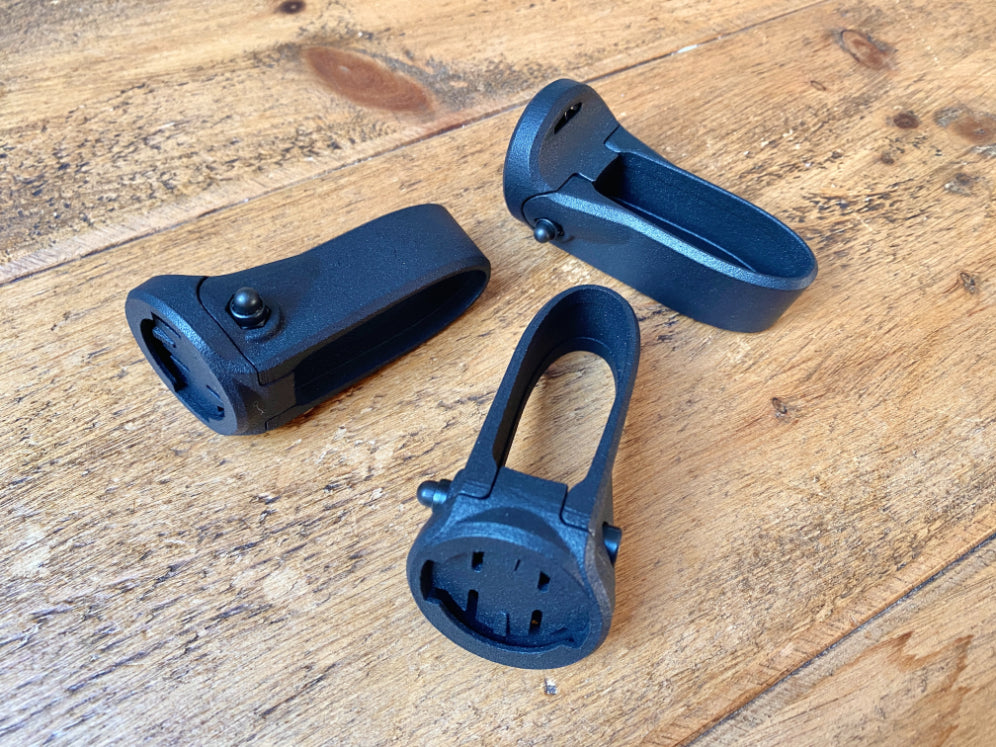

What's Included
- 1x 3D printed mount.
- 1x M4x30mm cap screw.
- 1x M4 dome Nyloc nut.

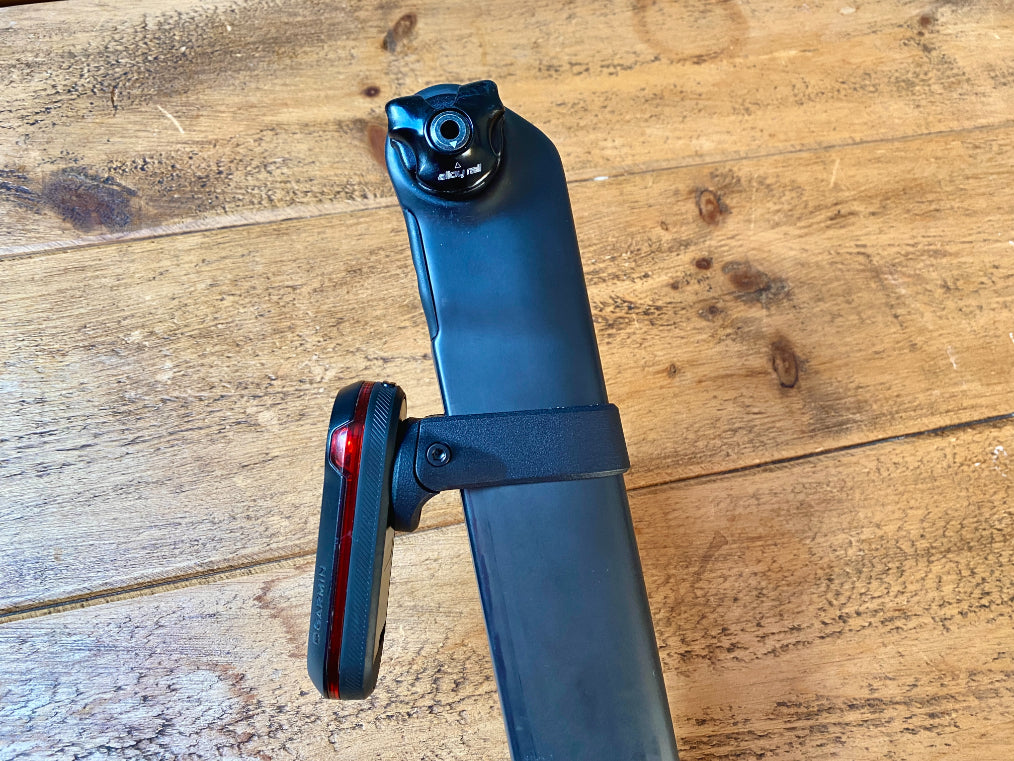

The Garmin Varia and seat post are pictured for reference only and not included.
Overview
This mount has been a popular request, now available as really clean and secure solution for mounting your Garmin Varia to your Specialized Venge (2019-2021) seat post. This design replaces the OEM Varia mount with rubber bands which would always tend to move or rotated whilst out riding.
This mount is compatible with both the 20mm and 0mm offset Venge (2019-2021) seat posts. The Venge seat post is cross compatible with the Shiv TT bike, hence this mount is also compatible with the Shiv TT bike.
Please note the Garmin interface on the Varia devices is the same as the Garmin Edge devices but rotated 90 degrees. Therefore if you mount a Garmin Edge cycle computer to this mount it may not be the correct orientation for your setup.
Please be aware, this MagCAD mount is compatible with Garmin Varia radar lights up to the RTL515/516. It is not compatible with the new Varia RCT715 radar/camera.
Application

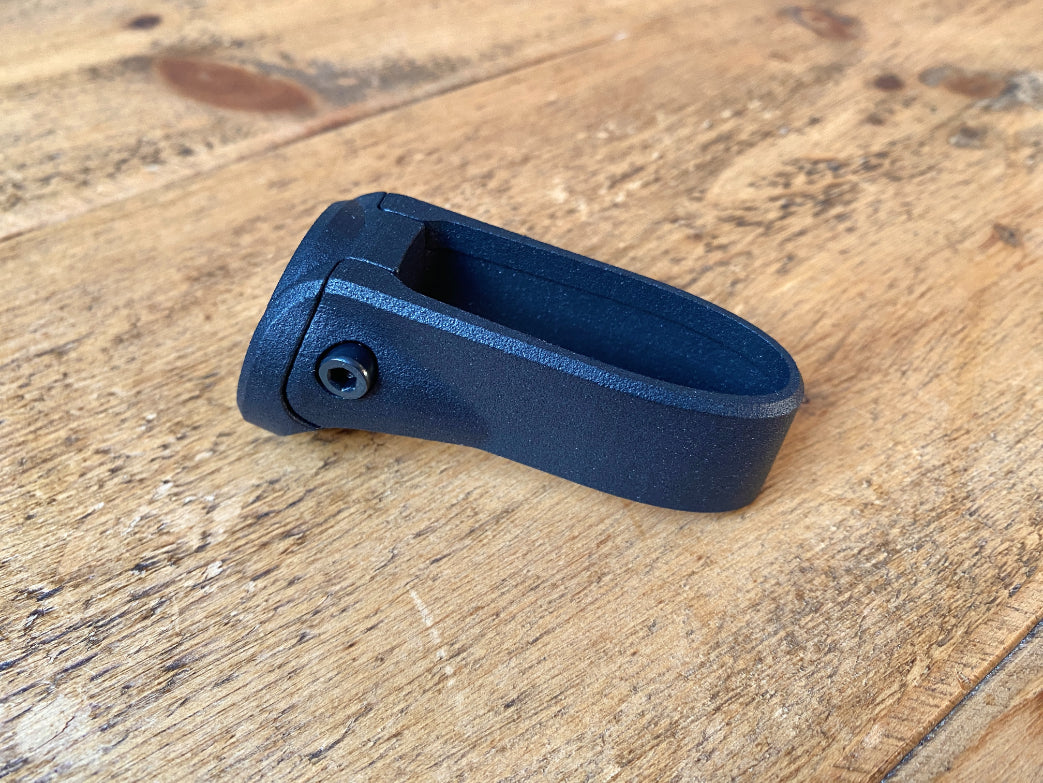

This MagCAD mount will be 3D printed and supplied fully assembled with stainless steel fasteners.
- Remove the M4 screw, supplied, and separate the two 3D printed components.

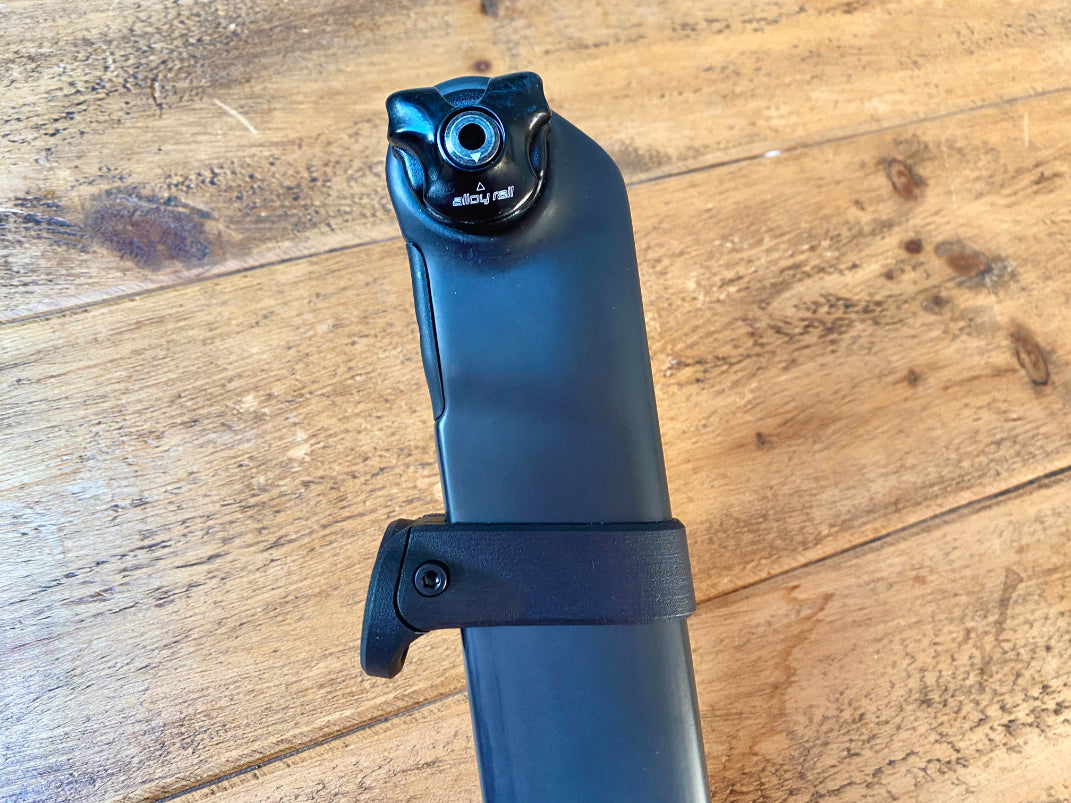

- Slot the horseshoe shaped component over the front of the seat post, noting the correct upward position and preventing the M4 Nyloc nut from falling out.
- Locate the Varia mount at the back of your seat post and re-install the M4 screw, loosely tightening.
- When assembled correctly the Varia interface should be vertical to the ground.
- Position up or down your Venge seat post to suit and tighten the M4 screw to 1Nm with a 3mm Allen key.
- Install your Garmin Varia device in the normal quarter turn motion.
All fasteners should be checked periodically to ensure they are still tight.
Compatible With:
- Garmin Varia devices up to RTL515/516.
- Not compatible with the Varia RCT715 radar/camera.
- Specialized Venge (2019-2021) 20mm and 0mm seat posts.
Specifications
- Weight: 17 grams (without hardware).
