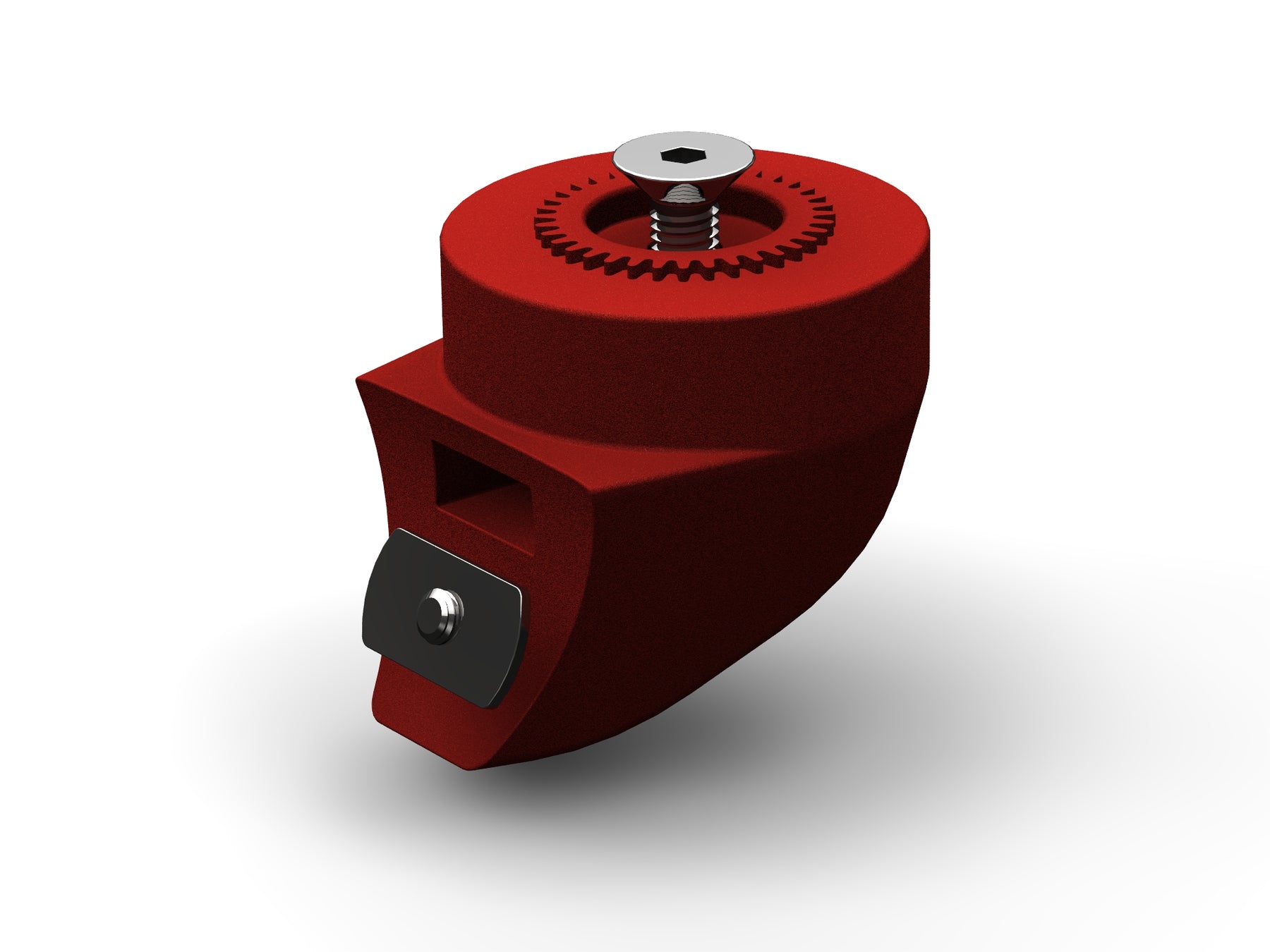

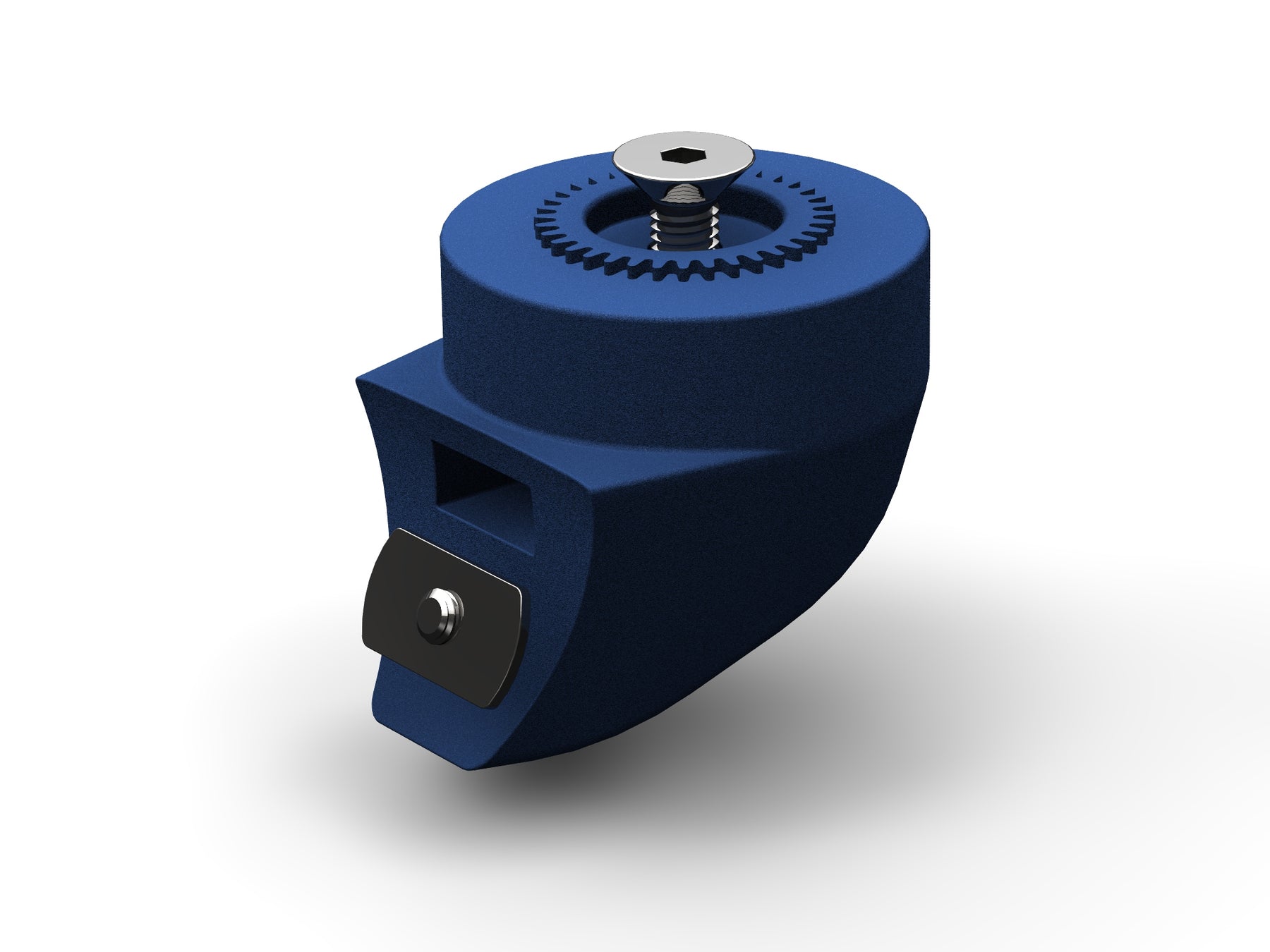

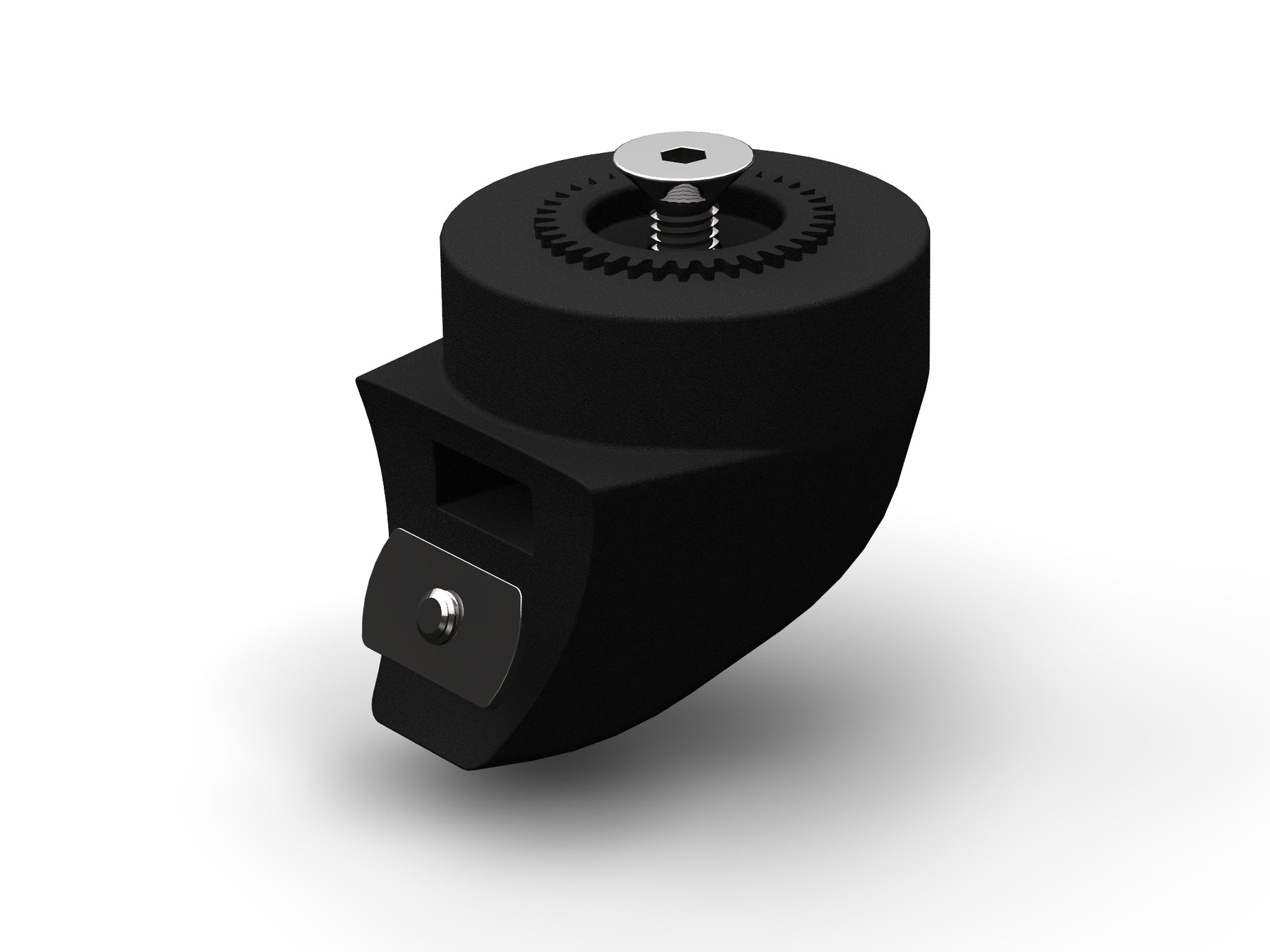

MagCAD Quad Lock Base Specialized Mount

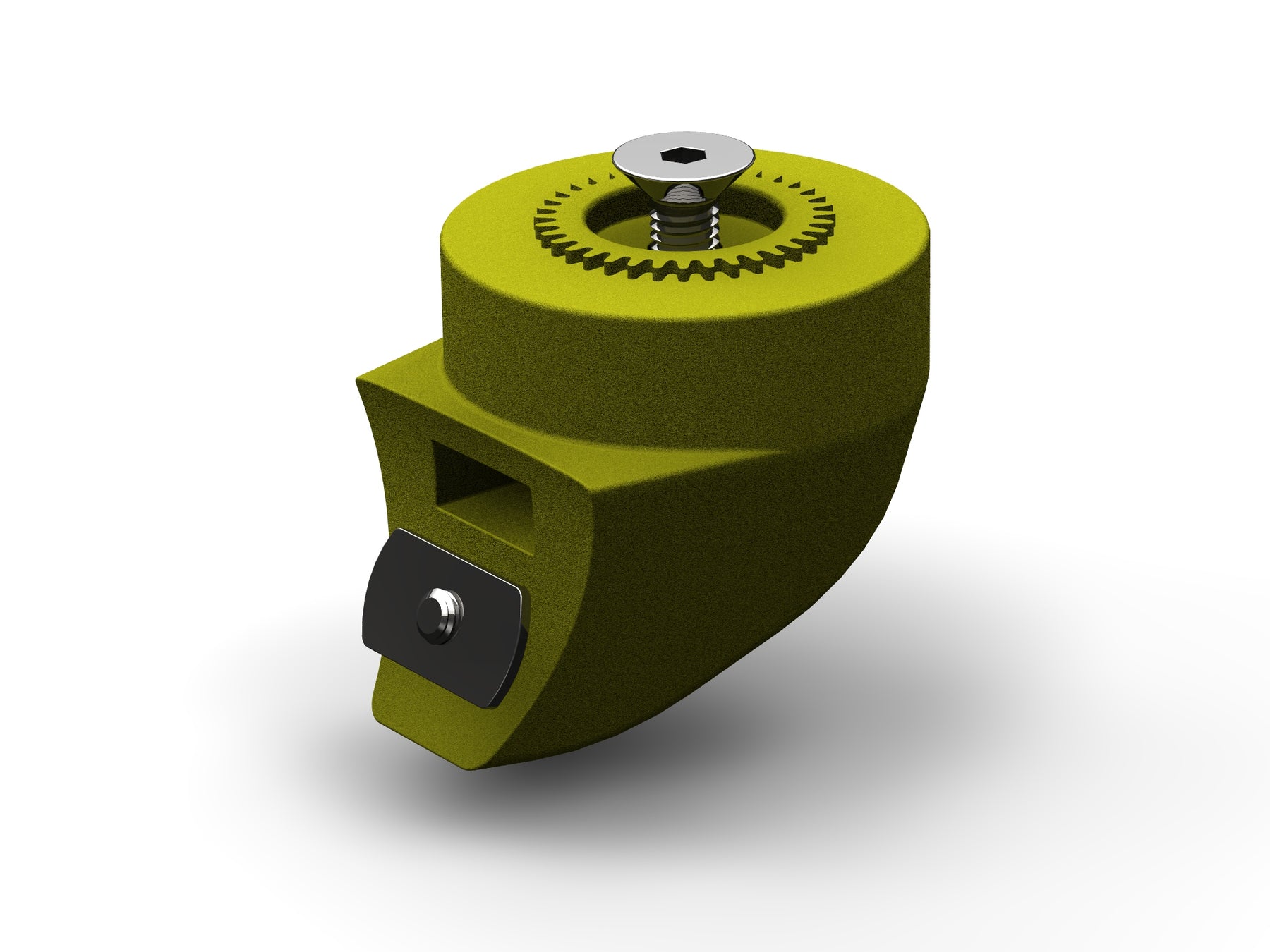

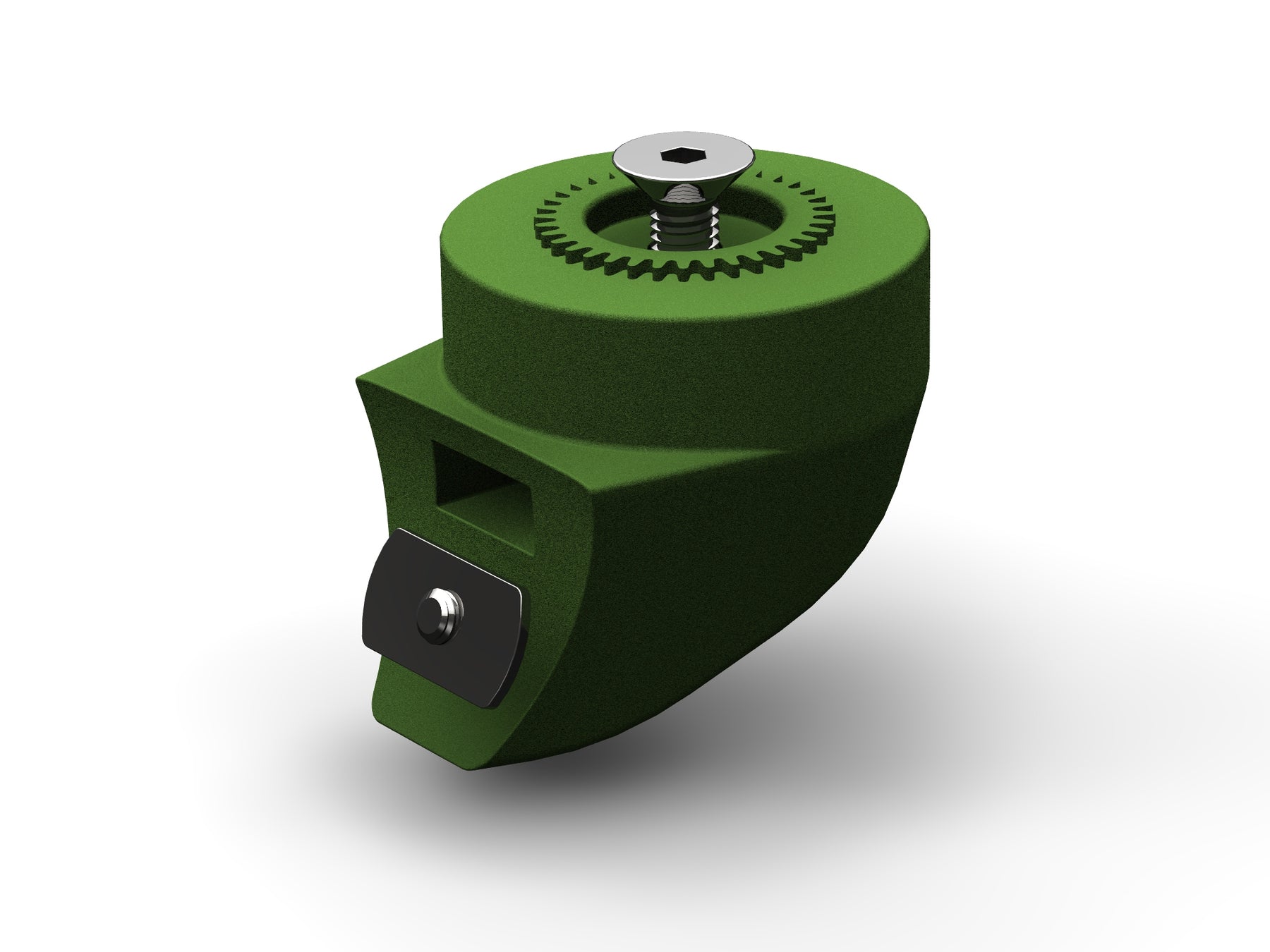

3D printed mount that provides a base for you to mount a Quad Lock interface and Quad Lock phone case.
What's Included
- 1x 3D printed mount.
- 1x M4x16mm cap screw.
- 1x M4 tee nut.
- 1x M5x30mm countersunk screw.
- 1x M5 Nyloc locking nut.
The Quad Lock interface, Quad Lock Case and Specialized stem pictured are for reference only and not included.
Overview

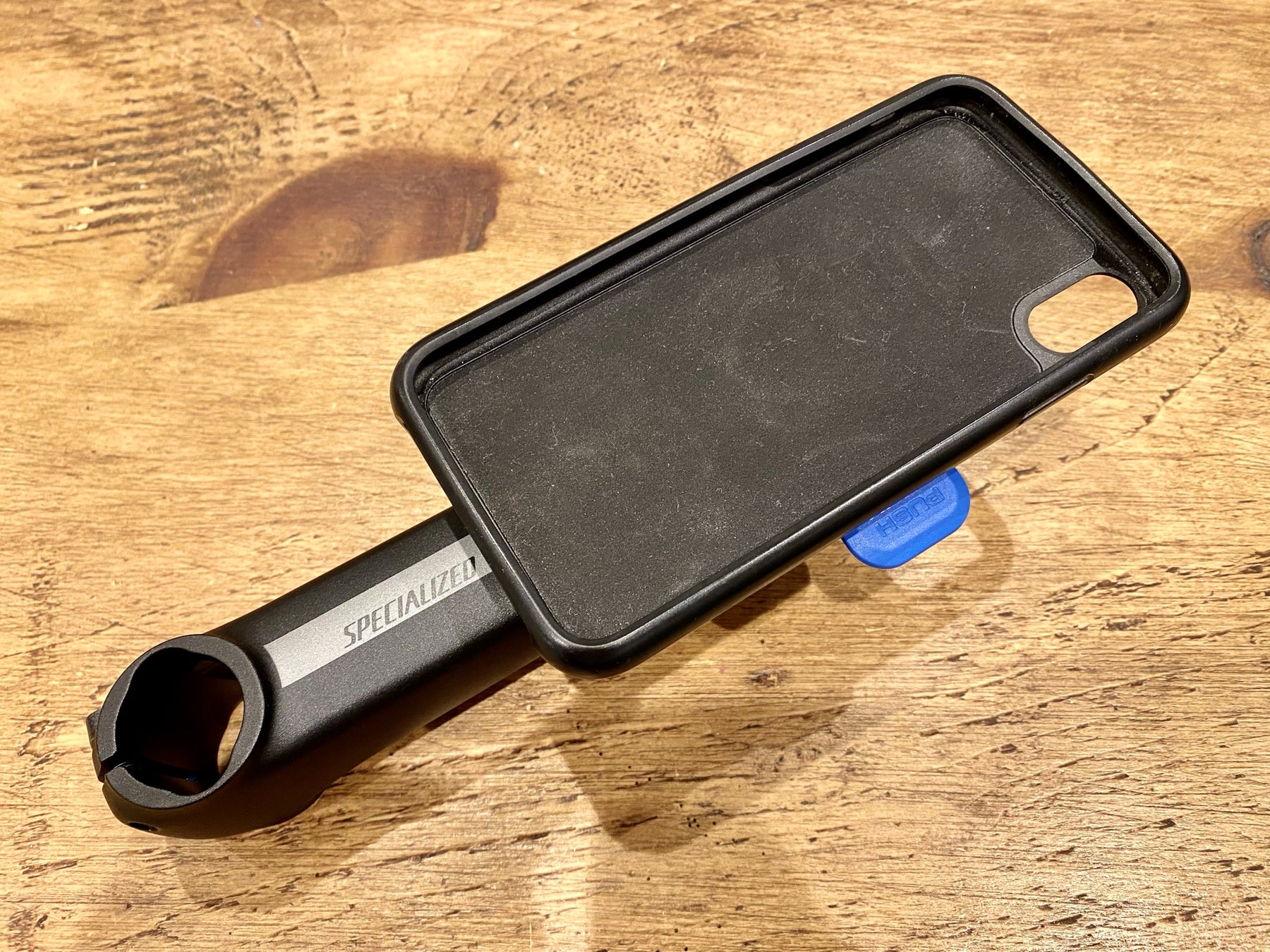

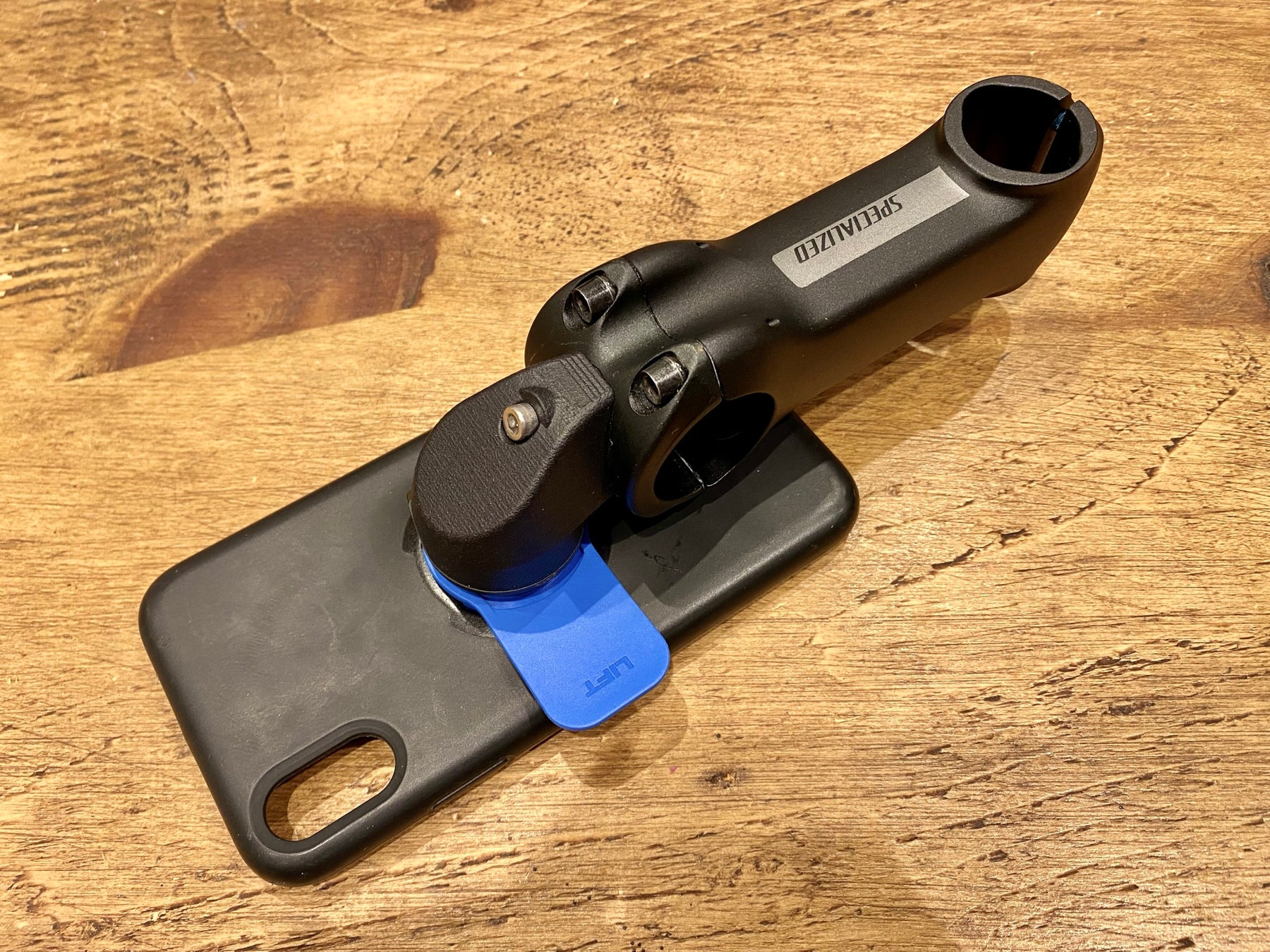

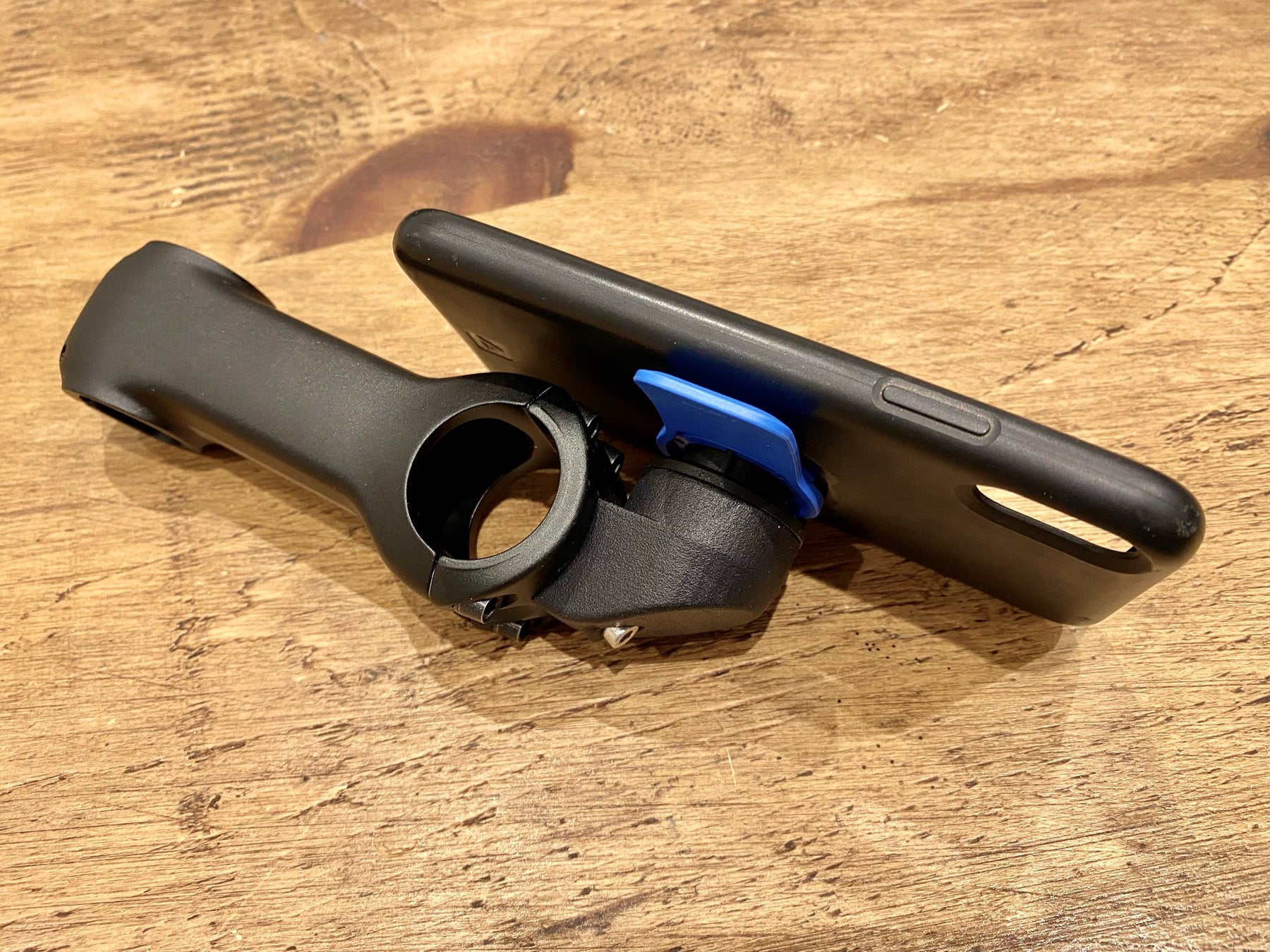

This MagCAD mount provides a base for the Quad Lock interface (not provided), allowing you to mount your Quad Lock case and phone securely and cleanly in front of a compatible Specialized stem. The new Specialized stem faceplate comes with a slot in the centre for a retained nut that provides a secure point to attach the mount.
This mount is particularly useful for those with aero profiled handlebars that don't fit the standard Quad Lock handlebar clamp or for those simply looking for a really tidy and clean setup.
The Quad Lock interface can be purchased as part of the Quad Lock Out Front Pro Mount for bicycles or the Quad Lock Motorcycle mount.
Application

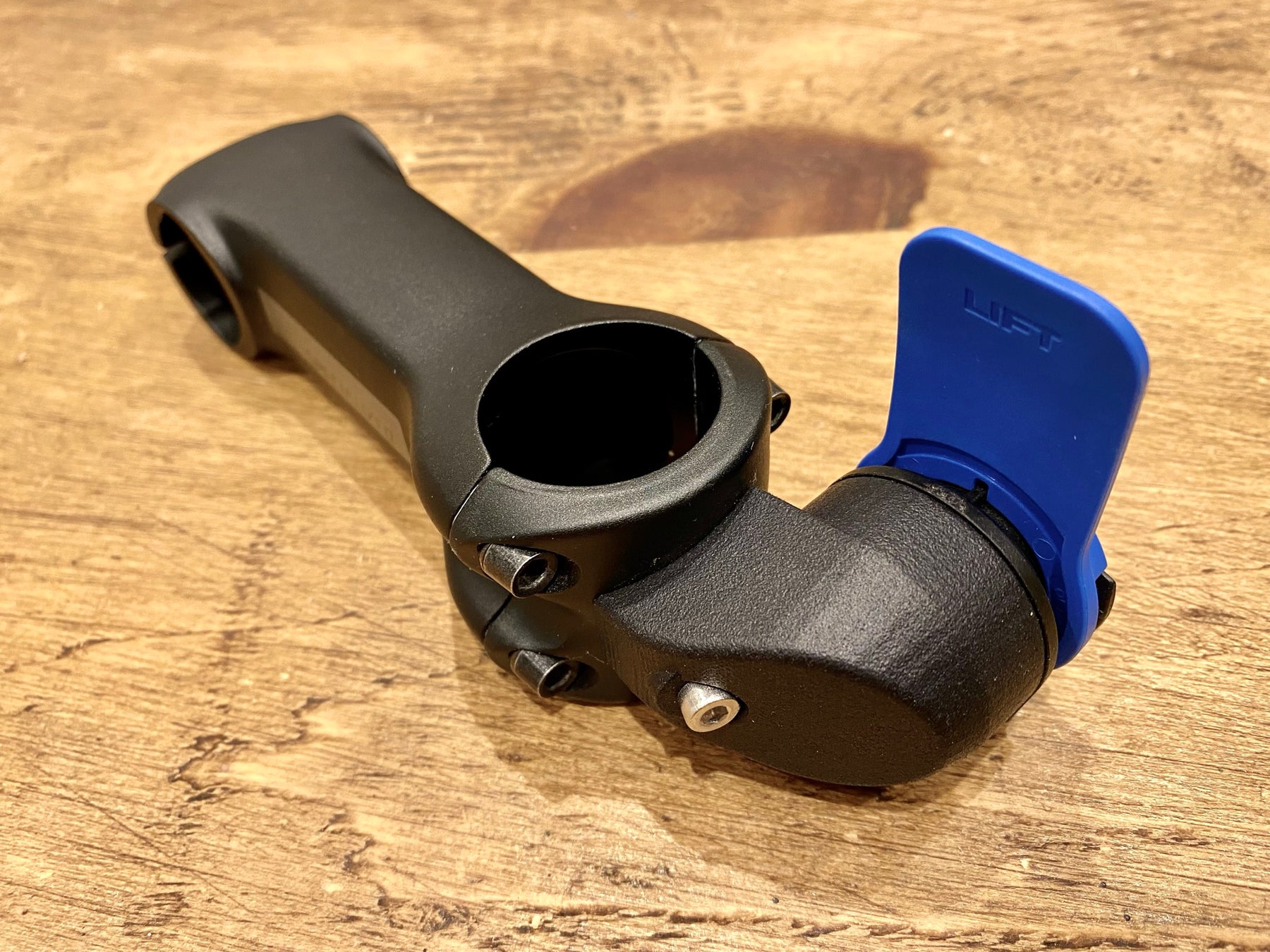

Fitting the MagCAD mount is a simple process. Simply bolt through your Specialized stem faceplate into the retained nut and rotate the mount to your preferred orientation.

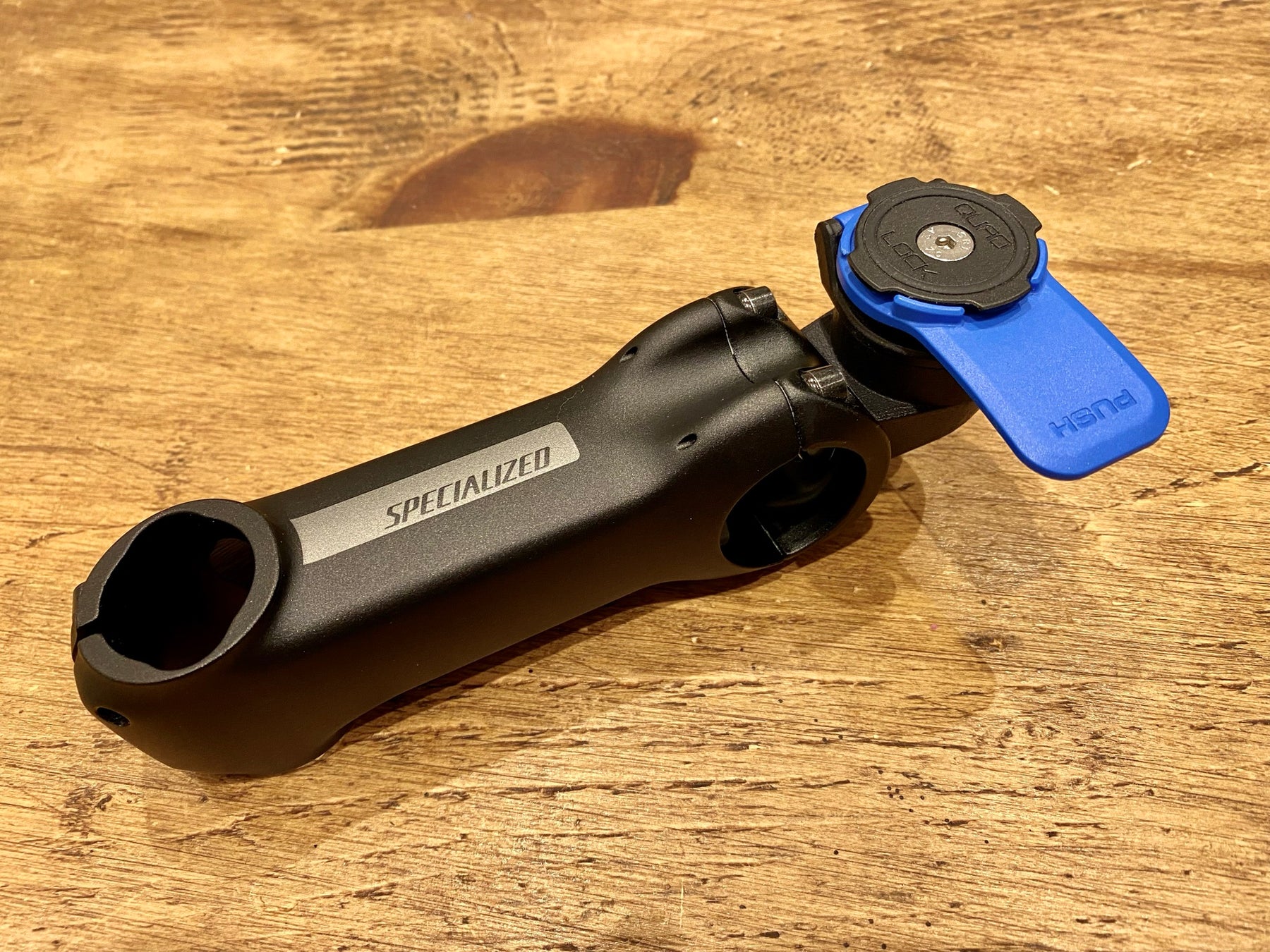

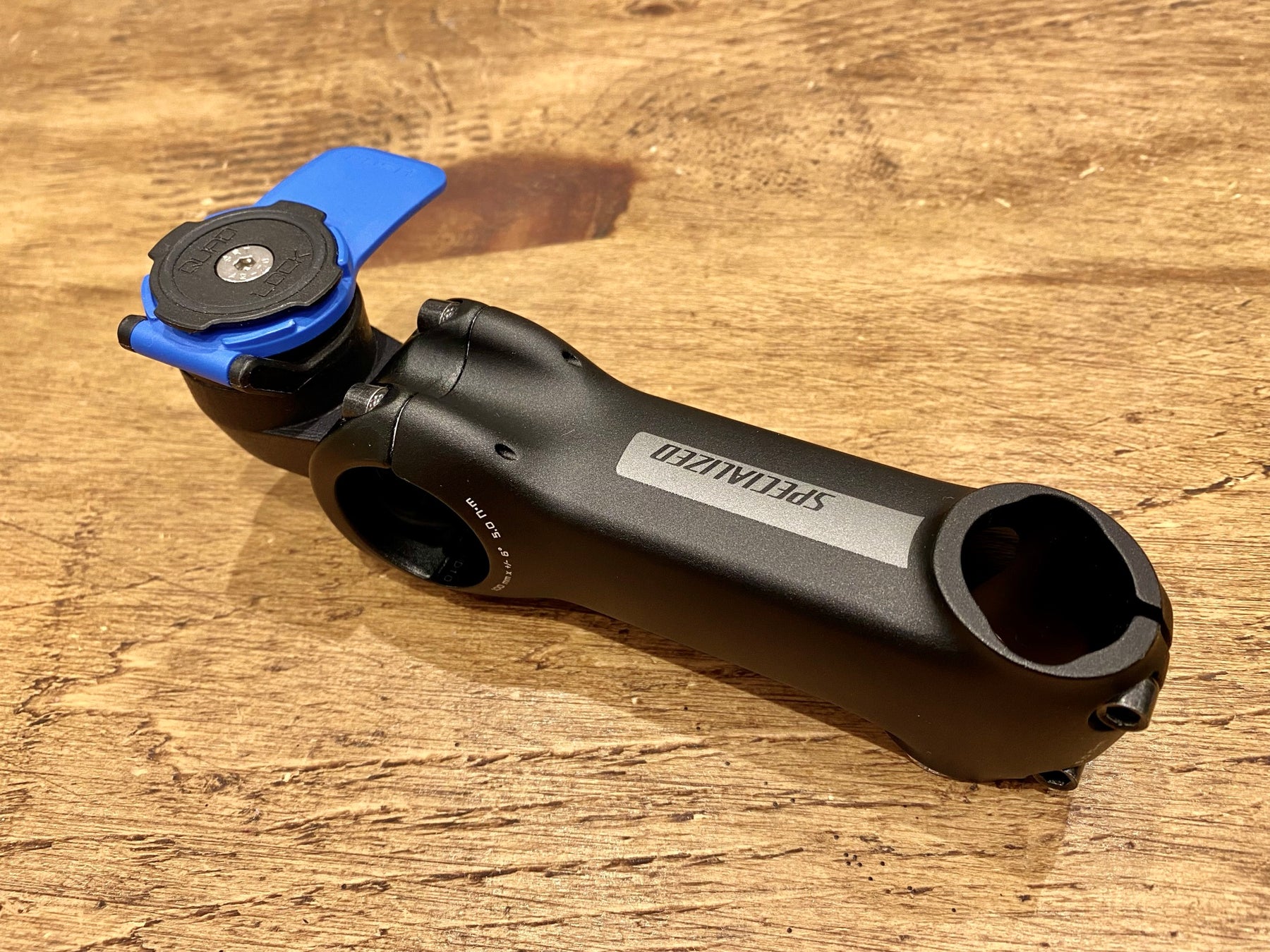

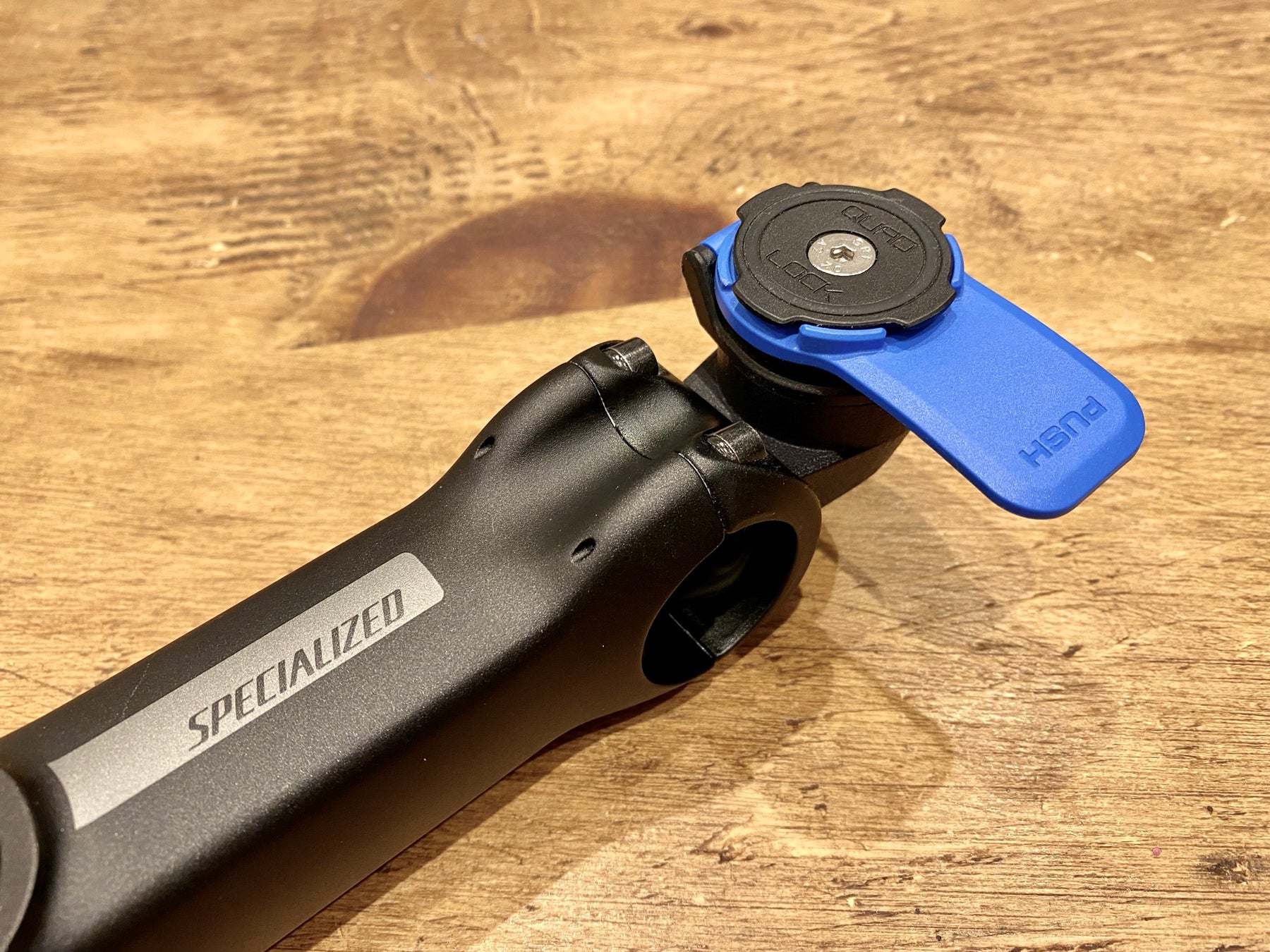

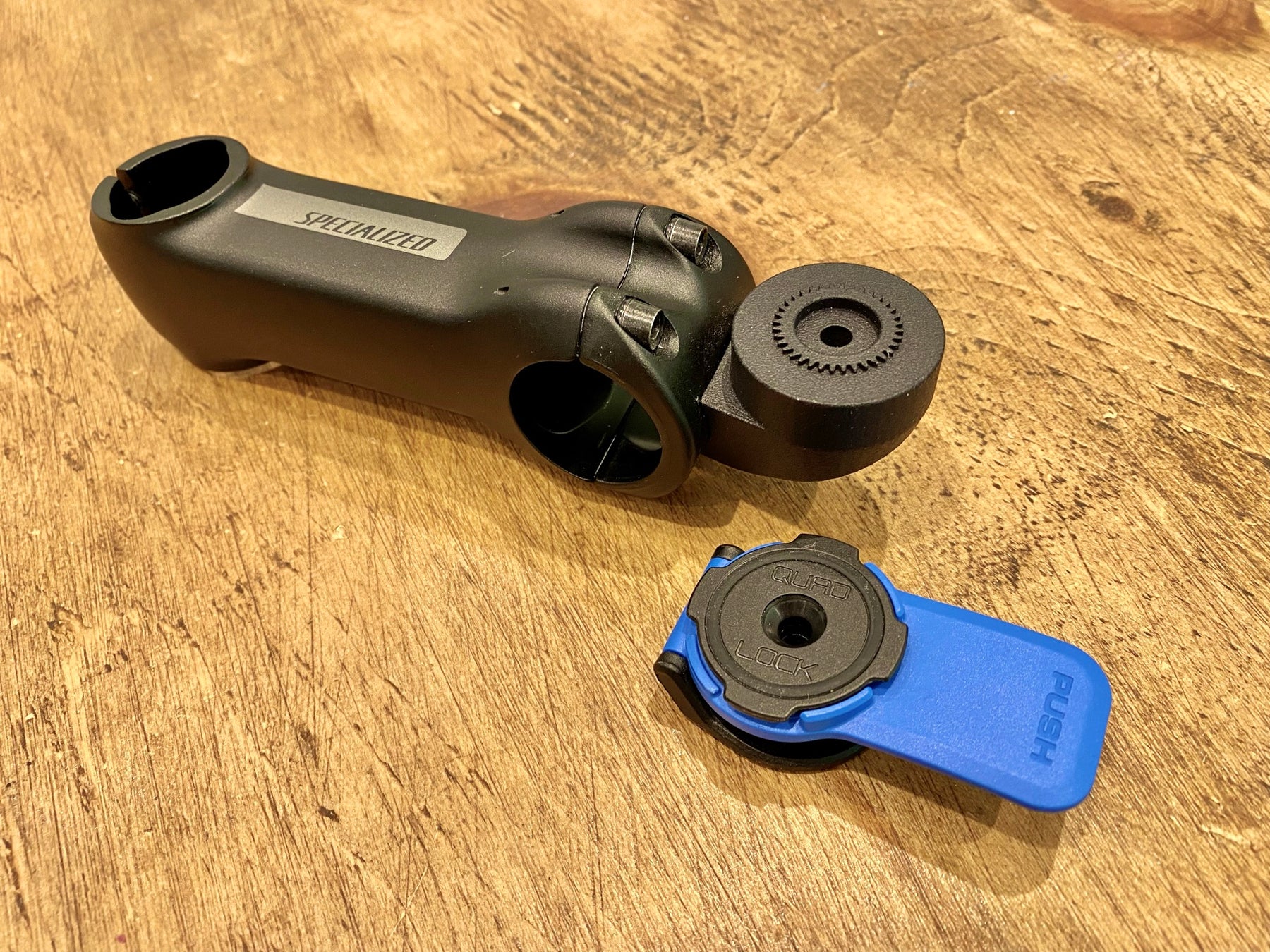

Bolt the Quad Lock interface (not provided) to the top of the mount with the M5 x 30 countersunk screw and M5 locking nut and rotate to your preferred orientation before tightening.
Please Note: A tether should always be used as additional security for your phone.
Roval Alpinist Cockpit
The MagCAD Specialized mount will attach to the Roval Alpinist handlebars. However, the contacting face is subtly different to the curve of the Roval bars and you will need a longer cap screw than supplied with the mount to ensure full thread engagement.
Please contact us when placing an order if you would like us to include the longer M4x20mm cap screw. Otherwise these are easy to source locally yourself.
Compatible With:
- Quad Lock interface (not included).
- Specialized stems: Venge, Tarmac SL7, Future.
- Roval Alpinist integrated handlebars & stem - See note above.
Specifications
- Weight: 25 grams (without hardware).
