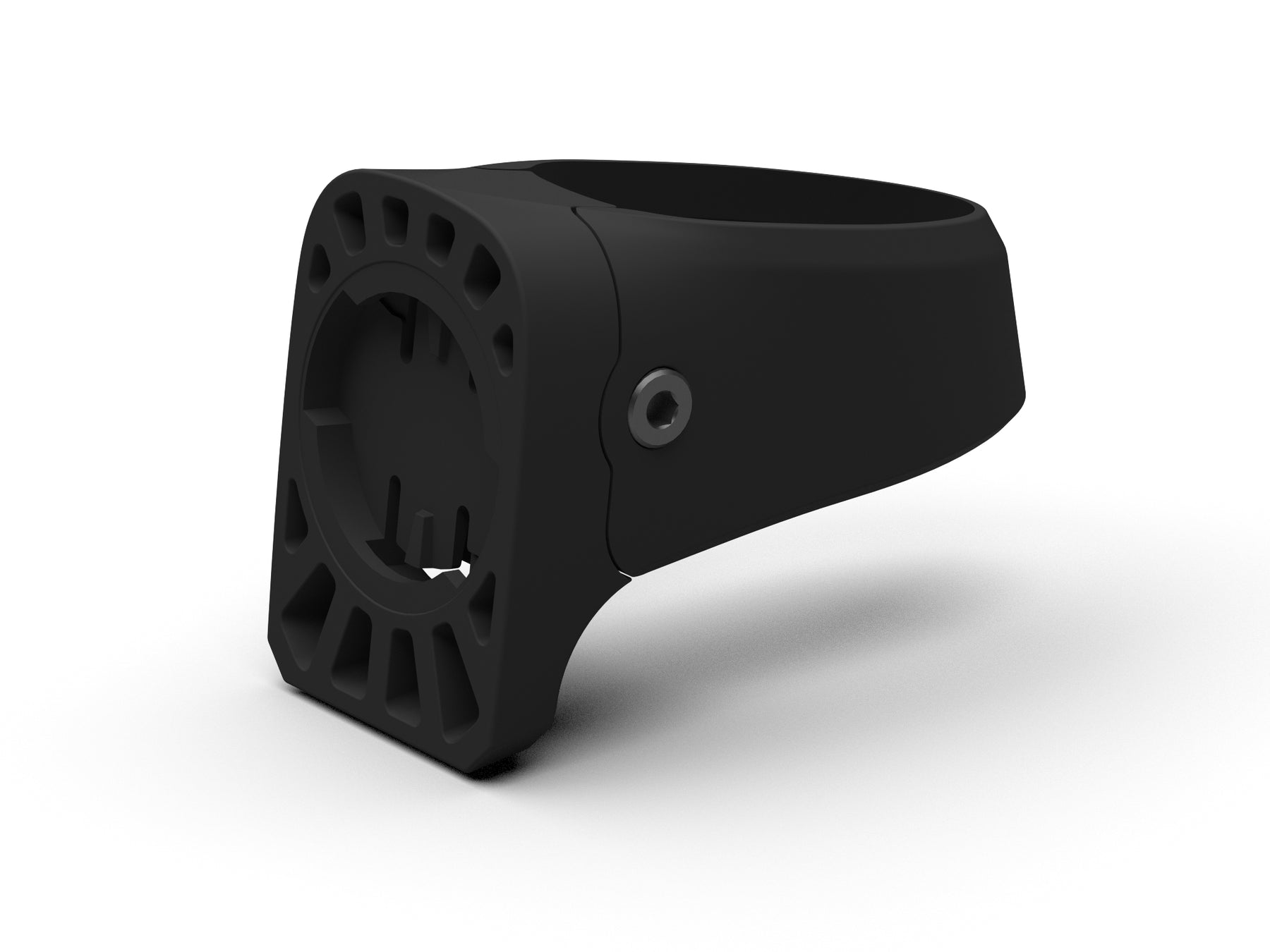

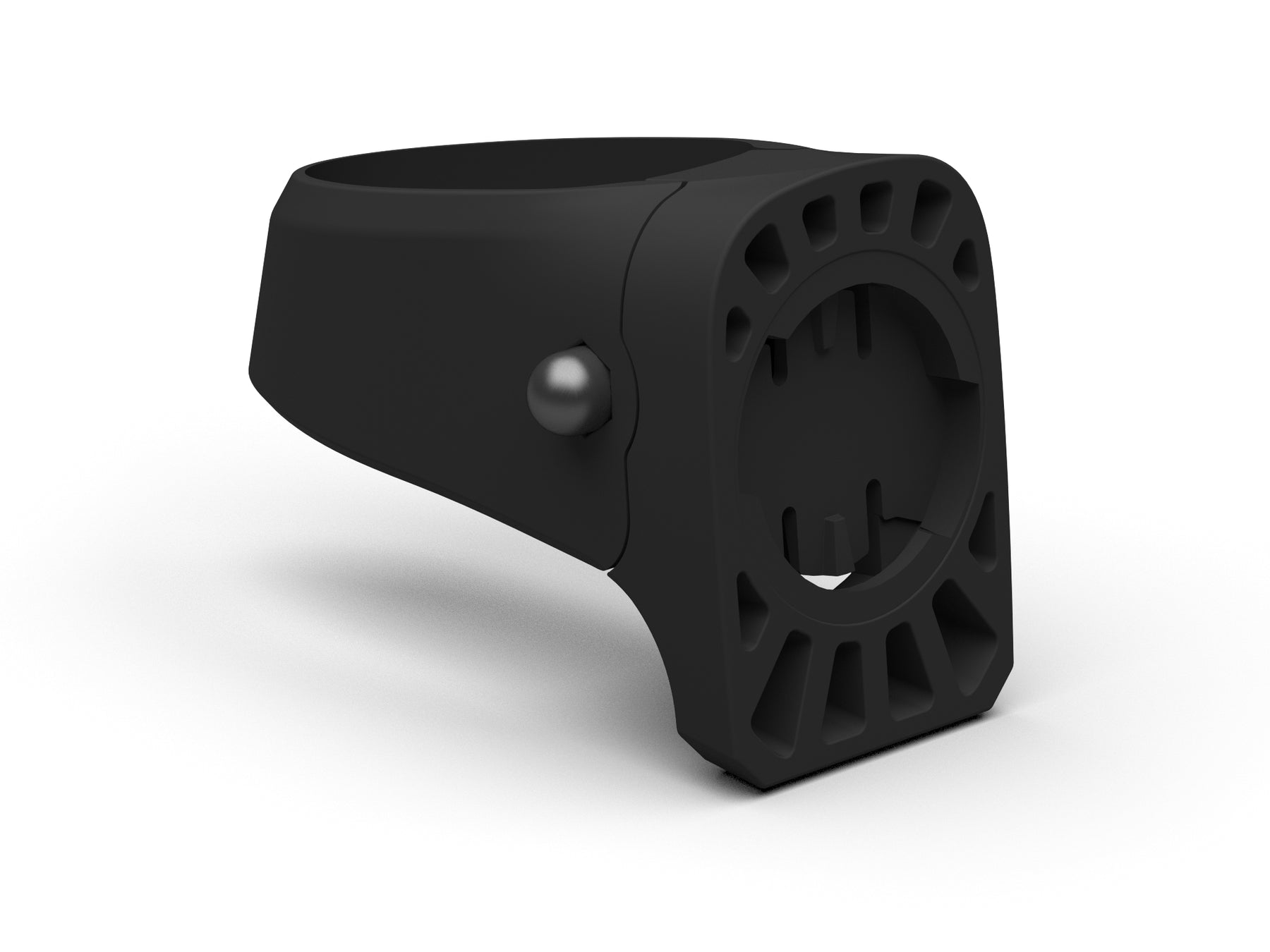

MagCAD Wahoo TrackR Radar Pinarello Grevil F Seat Post Clamp Mount

Mount your Wahoo TrackR Radar light to your Pinarello Grevil F (2022-2024) seat post with this MagCAD mount, now supplied with black stainless steel fasteners.

Also compatible with the Dogma F8, F10 and F12.

Please Note: This mount may not fit the new Pinarello Grevil F (2025) and Grevil GR (2025).

What's Included

• 1x 3D printed mount.
• 1x M4x30mm cap screw - black stainless steel.
• 1x M4 dome Nyloc nut - black stainless steel.

The Wahoo TrackR and Pinarello seat post are pictured for reference only and not included.

Overview

Developing our new range of Wahoo TrackR Radar Seat Post Clamp Mounts with this Grevil F (2022-2024) version. Offering a really clean and secure solution for mounting your Wahoo TrackR Radar to your Pinarello Grevil F (2022-2024) seat post. This design replaces the OEM TrackR mount with rubber bands which would always tend to move or rotated whilst out riding.

This mount is primarily designed for the Grevil F (2022-2024) but will fit some other models within the Pinarello range including older now discontinued models. This mount may not fit the new 2026 Pinarello Grevil F and Grevil GR. Models will be added to the compatibility list, below, once tested. It may also not fit some painted seat posts depending on the thickness of paint. Feel free to get in contact for more details on compatibility.

This mount holds your device vertically, to reliably detect traffic coming from behind, whilst the underside of the mount remains parallel to your frame top tube for the very best aesthetics.

Application

This MagCAD mount will be 3D printed and supplied loosely assembled with stainless steel fasteners.

1. Remove the M4 screw, supplied, and separate the two 3D printed components.
2. Slot the horseshoe shaped component over the front of the seat post, noting the correct upward position and preventing the M4 Nyloc nut from falling out.
3. Locate the TrackR interface component at the back of your seat post and re-install the M4 screw, loosely tightening.
4. When assembled correctly the TrackR interface should be vertical to the ground.
5. Position up or down your Grevil F seat post to suit and tighten the M4 screw to 1Nm with a 3mm Allen key.
6. Install your Wahoo TrackR Radar device in the normal eighth turn motion.

All fasteners should be checked periodically to ensure they remain tight.

Compatible With:

• Wahoo TrackR Radar.
• Pinarello Grevil F (2022-2024).
• Pinarello Dogma; F8 (2014-2016), F10 (2017-2018) and F12 (2019-2020).
• May NOT fit the new Pinarello Grevil F (2025) and Grevil GR (2025).
• May NOT be compatible with some painted seat posts.

Specifications

• Weight: 25 grams (without hardware), 29 grams (with hardware).
